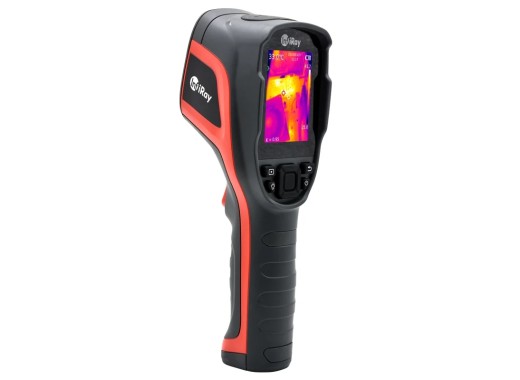

InfiRay C200 thermal imaging camera
Details
The InfiRay C200 is a thermal imaging camera with a resolution of 256 x 192 pixels and a temperature range of -20 to 550 °C. It also features a 2.8-inch LCD display with a resolution of 320 × 240 pixels and a refresh rate of 25 Hz. The built-in battery offers an operating time of at least 11 hours and can be fully charged within 4 hours ensuring plenty of usage time before it requires recharging. Dual-spectrum imaging allows this camera to display a combination of infrared and visible light via the visible light lens. This camera also offers other important features such as: auto hot & cold spot tracking, image and LED alarm, LED fill light and pc software.
This camera can be considered to be very sturdy as it has an IP54 rating and has been drop-tested up to 2m. It can be mounted on a tripod because it features a 1/4-inch mount connector on the handle-bottom.
Model overview
| Model | C200 SE | C200 |
|---|---|---|
| Temperature range | -20 °C to 350 °C | -20 °C to 550 °C |
| Image modes | IR | IR, VIS, PIP, Fusion |
| Battery | At least 9 hours | At least 11 hours |
| Price |
Specifications
| Accuracy | ±2 °C or ±2% (whichever is greater) |
| IR resolution | 256 x 192 |
| NETD | ≤40 mK |
| Frame rate | 25 Hz |
| FOV | 56° x 42° |
| Emissivity | 0.01 ~ 1 adjustable by 0.01 increments |
| Display | 2.8 inch LCD (320 × 240 pixels) |
| Colour palettes | White Hot, Black Hot, Iron Red, Hot Iron, Rainbow, Rainbow HC, RdGy |
| Storage | 16GB micro-SD card |
| Dimensions | 237 x 75 x 92 mm |
| Weight | 520 g |
Accessories
The InfiRay C200 thermal imaging camera includes:
- USB-A to USB-C cable
- 16 GB MicroSD card
- Portable bag
Pros and cons
- Good battery life
- Dual-spectrum Imaging
Downloads
| InfiRay C200 datasheet |  (3.05 MB) | Download |
| InfiRay C200 user manual | (635.84 KB) | Download |
