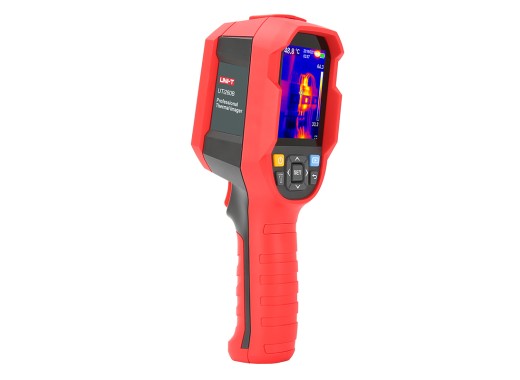

UNI-T UTi260B thermal imaging camera
Details
This affordable and very popular thermal imaging camera from UNI-T is a true hit with international bloggers. Especially because of the high resolution (256x192) and big temperature range (-20 to 550 degrees Celsius).
Specifications
| Range | -15 to 550 °C |
| Accuracy | ±2 °C or ±2% (whichever is greater) |
| Focal distance | Min. 30 cm |
| Response time | 40 ms |
| Spot measurement | Center, 3 areas (max/min), auto spot tracking, alarm |
| IR resolution | 256 x 192 (49152 pixels) |
| NETD | 50 mK |
| Detector type | VOX Focal plane array (FPA) |
| Screen | 2,8 inch (320 × 240 pixels) |
| Battery | Up to 6 hours |
| Charge time | 0-100% in 5 hours |
| Dimensions | 236 × 86 × 76mm (HxWxD) |
| Net weight | 0.910kg |
Optionally, you can purchase the which makes it possible to focus on small parts, like electronic boards.
Accessories
The UTi260B includes
- Gift box
- USB-A to USB-C cable
- 16 GB MicroSD card
- Quick start guide
- Windows software (via download link)
Pros and cons
- High resolution
- Attractive price
- Very heavy (910 gram)
- Slow boot time (up to 30 sec)
Downloads
| UNI-T thermal imaging cameras datasheet |  (266.22 KB) | Download |
| Uti260B user manual | (7.05 MB) | Download |
| UTi120B PC Software Installation File |  (67.7 MB) | Download |
