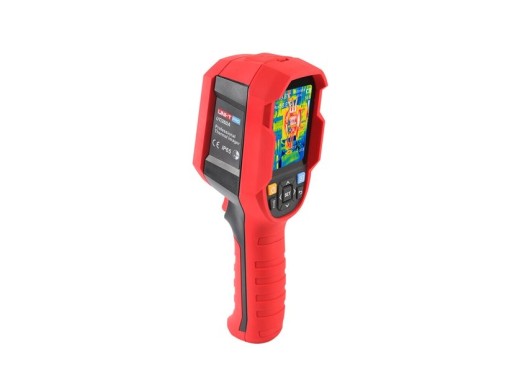

UNI-T UTi720A thermal imaging camera
Details
The UNI-T UTi720A is a thermal imaging camera with a resolution of 256 x 192 pixels and a temperature range of -20 to 400 °C. The camera features a 2.8 inch TFT LCD display with a resolution of 320 x 240 pixels and a refresh rate of 25 Hz. In addition, the UTi720A has a built-in digital camera with a resolution of 640 x 480 pixels. The 5000mAh Li-ion battery offers an operating time of at least 7 hours and can be fully charged whithin 5 hours ensuring plenty of usage time before it requires recharging.
The camera also offers important additional features such as: 7 color palettes, high/low temperature alarm, flashlight, pc software and up to 32 GB of storage with a micro SD card.
This thermal imaging camera is also known as the UNI-T UTi260A.
Although this camera is an excellent choice, we recommend to consider the E2 which outperforms the UTi720A at a similar price.
Specifications
| Range | -20 to 400 °C |
| Accuracy | ±2 °C or ±2% (whichever is greater) |
| Focal distance | Min. 30 cm |
| Response time | 40 ms |
| Spot measurement | Center, 3 areas (max/min), auto spot tracking, alarm |
| IR resolution | 256 x 192 (49152 pixels) |
| NETD | ≤ 50 mK |
| Detector type | VOX Focal plane array (FPA) |
| Screen | 2.8 inch (320 × 240 pixels) |
| Battery | At least 7 hours |
| Charge time | 0-100% in 5 hours |
| Dimensions | 236 × 86 × 76mm (HxWxD) |
| Net weight | 0.490kg |
Accessories
The UTi720A includes
- Charger
- USB-A to USB-C cable
- Quick start guide
Pros and cons
- Built-in digital camera
- Slow boot time (up to 30 sec)
- No visual light camera
Downloads
| UNI-T UTi720A user manual |  (8.29 MB) | Download |
| UNI-T UTi720A datasheet | (2.13 MB) | Download |
