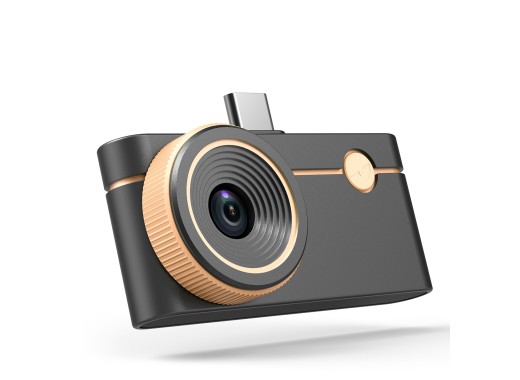

Thermal Master P3 thermal imaging camera (Android & iOS)
Promotion! This product is temporarily reduced in price. Offer valid while stocks last!
Details
The Thermal Master P3 is a thermal imaging camera compatible with both Android and iOS phones, designed for a wide range of electrical inspections. Featuring a good 256x192 resolution, which can be improved up to an impressive 512x384 resolution clarity using the X³ IR resolution software. Furthermore, the P3 has a high sensitivity with an NETD of <35mK and can detect leakage currents as low as 1mA. However, it features an 8mm adjustable macro lens that allows manual focus for extreme close-up inspections — making it ideal for detecting tiny components such as 0.25mm resistors. The camera has a range from 8mm to 80m.
The camera operates in a wide temperature range of -20 to 600°C with an accuracy of ±2°C or ±2%. It’s suited for various applications, including detailed PCB analysis, HVAC troubleshooting, and electrical system diagnostics. Finally, the P3 has some nice features, including IQ+ precision temp, which can dynamically compensate for temperature drift, including ambient temperature.
Model overview
| P1 (Android / iOS ) | P2 (Android ) | P2 Pro (Android / iOS ) | P3 (Android / iOS ) | P4 (Android ) | |
|---|---|---|---|---|---|
| IR resolution | 160 x 120 | 256 x 192 | 256 x 192 | 256 x 192 | 256 x 192 |
| Upscaled resolution | 320 x 240 | 512 x 284 | 512 x 384 | 512 x 384 | 512 x 384 |
| NETD | <40 mK | <40 mK | <40 mK | ≤35 mK | ≤35 mK |
| FOV | 52° x 39° | 56° x 42.2° | 56° x 42.2° | 40° x 30.2° | 56° x 42.2° |
| Price |
Specifications
| Temperature range | -20 to 600 °C |
| Accuracy | ±2 °C or ±2% (whichever is greater) |
| Focal length | 4.3 mm |
| Range | 8 mm to 80 m |
| Frame rate | 25 Hz |
| Emissivity | 0.01 - 0.99 adjustable (default 0.95) |
| Colour palettes | 12 (whitehot / blackhot / ironred / red hot + 8 other palletes) |
| Connection | USB-C |
| Dimensions | 59 × 27 × 17.2 mm |
| Weight | 26.3 g |
Accessories
- Portable case
- USB-C to lightning adapter
- 50cm extension cable
Pros and cons
- Compatible with both Android and iOS
- 512x384 IR resolution clarity with X³ IR resolution software
- <35mK NETD
- Able to detect 1mA current leakage
Downloads
| Thermal Master P3 datasheet |  (10.97 MB) | Download |
