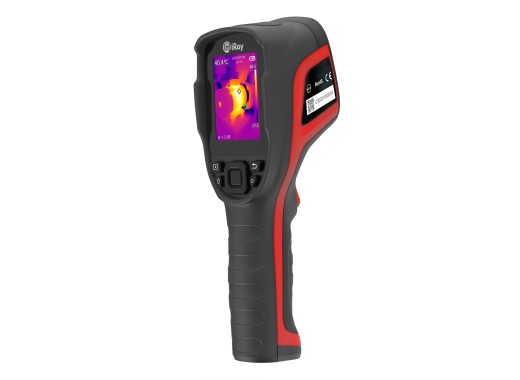

InfiRay C200 SE thermal imaging camera
Details
The C200SE is not available anymore. The CX200SE+ is the successor of the C200SE.
The InfiRay C200 SE is a thermal imaging camera with a resolution of 256 x 192 pixels and a temperature range of -20 to 350 °C. It also features a 2.8-inch LCD display with a resolution of 320 × 240 pixels and a refresh rate of 25 Hz. The built-in battery offers an operating time of at least 9 hours and can be fully charged within 4 hours ensuring plenty of usage time before it requires recharging. This camera also offers other important features such as: auto hot & cold spot tracking, image and LED alarm, LED fill light and pc software. The C200 SE does not have a visible light lens in contrast to the C200 and therefore does not feature dual-spectrum imaging.
This camera can be considered to be very sturdy as it has an IP54 rating and has been drop-tested up to 2m. It can be mounted on a tripod because it features a 1/4-inch mount connector on the handle-bottom.
Model overview
| Model | C200 SE | C200 |
|---|---|---|
| Temperature range | -20 °C to 350 °C | -20 °C to 550 °C |
| Image modes | IR | IR, VIS, PIP, Fusion |
| Battery | At least 9 hours | At least 11 hours |
| Price |
Specifications
| Accuracy | ±2 °C or ±2% (whichever is greater) |
| IR resolution | 256 x 192 |
| NETD | ≤40 mK |
| Frame rate | 25 Hz |
| FOV | 56° x 42° |
| Emissivity | 0.01 ~ 1 adjustable by 0.01 increments |
| Display | 2.8 inch LCD (320 × 240 pixels) |
| Colour palettes | White Hot, Black Hot, Iron Red, Rainbow |
| Storage | 16GB micro-SD card |
| Dimensions | 237 x 75 x 92 mm |
| Weight | 520 g |
Accessories
The InfiRay C200 SE thermal imaging camera includes:
- USB-A to USB-C cable
- 16 GB MicroSD card
- Portable bag
Pros and cons
- Good battery life
- Attractive price
- No visible light lens
Downloads
| InfiRay C200 SE datasheet |  (2.07 MB) | Download |
