Owon SPE6205 power supply
Details

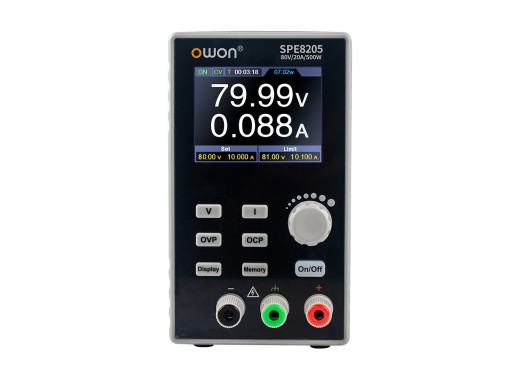

Note: Pictures are of the SPE8205, but the two devices are comparable.
The Owon SPE6205 is a competitively priced compact 500W single-channel DC benchtop power supply with all the regular features such as over-voltage (OVP) and over-current protection (OCP). It has a high resolution of 10mV/1mA. The display is a high-resolution 2.8" LCD which displays set, limit and momentary parameters. The SPE6205 allows you to monitor the voltage and current in real-time, using graphs on the display. You can store and edit up to 4 groups of output waveforms. The power supply can be hooked up to a host PC with a USB and communicated via SCPI. It makes for a great, simple, slim form factor power supply with plenty of power for beginners.
Model overview
| Model | SPE3102 | SPE3103 | SPE6103 | SPE6205 |
|---|---|---|---|---|
| Voltage range | 0.01 - 30 V | 0.01 - 30 V | 0.01 - 60 V | 0.01 - 60 V |
| Current range | 0.001 - 10 A | 0.001 - 10 A | 0.001 - 10 A | 0.001 - 20 A |
| Output power | 200 W | 300 W | 300 W | 500 W |
| Price |
Specifications
| Outputs | 1 |
| Resolution | 10 mV / 1 mA |
| Memory | 4 custom output waveforms |
| Ripple | 50 mV / 15 mA |
| Protection | OVP, OCP, OTP |
| Interfaces | USB (SCPI) |
| Eleshop noise production rating | ★ ★ ★ |
| Display | 2.8" colour LCD, 4 digits |
| Weight | 1.8 kg |
| Dimensions | 82 x 142 x 226 mm |
Accessories
All SPE series power supplies are delivered including:
- Power cord
- USB cable
Pros and cons
- Competitively priced for 500W
- Compact
Downloads
| OWON SPE6205 datasheet |  (3.42 MB) | Download |
| Owon SPE series user manual | (1.66 MB) | Download |
