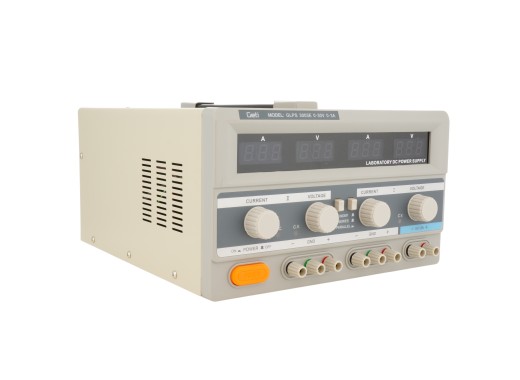

Dual power supply 0-30V 0-3A
Details
A stabilized double digital power supply which features backlit LED displays to easily set and measure both voltage and current. The supply features two 0 - 30V 3A outputs and a fixed 5V 3A connection. The two channels both feature their own dials for setting the voltage and current. With the two buttons in the centre the connections can be switched in series and parallel internally, which offers an easy user experience. With an internal noise of about 1mVpp the power supply is pretty precise.
The power supply is cooled through a ventilator.
Specifications
| Voltage (max) | 2x 0-30V DC (can be switched in series) + 1x 5V DC |
| Current (max) | 2x 0-3A (can be switched in parallel) + 1x 3A |
| Ripple | < 1mV RMS |
| Dimensions | 262x163x360mm |
| Weight | 7.1kg |
In parallel mode a maximum of 6A can be supplied. In series the supply can deliver up to 60 Volt.
De manual of this supply can be found here.
