Thermal Master X3 thermal camera for Android
Details
The Thermal Master X3 thermal camera is a camera module that allows you to turn an Android smartphone into a thermal imaging camera. The X3 can see up to 1500 meters, which is a lot further than standard thermal imaging cameras. Together with the high frame rate of 60Hz to display fast movements clearly, this camera is great for outdoor use. The camera has an IR resolution of 384 x 288 pixels and has a 15x digital zoom. This model is only compatible with Android. Finally, night vision is included and the X3 performs well in harsh environments like fog and rain.

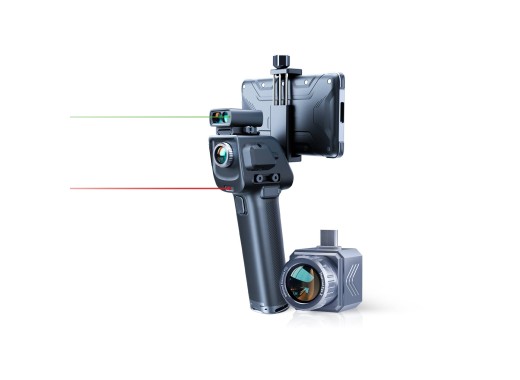

Note: The thermal camera is by default integrated inside the handgrip. It is possible to attach the X3 directly to an Android USB-C port. We also offer an additional display.
Model overview
| Model | X2 (Android / iOS ) | X3 | T2 Max |
|---|---|---|---|
| Focal length | 13 mm | 15 mm | 15 mm |
| IR resolution | 256 x 192 (49152 pixels) | 384 x 288 (110592 pixels) | 256 x 192 (49152 pixels) |
| NETD | ≤ 40 mK | ≤ 25 mK | ≤ 20 mK |
| Frame rate | 50 Hz | 60 Hz | 50 Hz |
| Detection range | 900 m | 1500 m | 1500 m |
| Price |
Specifications
| Temperature range | 0 to 100 °C |
| Display | External |
| Colour palettes | White-hot / black-hot / red-hot / iron red / night vision green |
| Magnification | 15X digital zoom |
| Battery | Up to 18 hours |
| Weight | 18.5 g (380 g with handle) |
Accessories
The Thermal Master X3 comes by default with:
- Handgrip (thermal camera integrated)
- USB-C extension cord
- 5000mAh 3.6V battery
- Allen key & screwdriver
- Fastening screws & pads
- Small carrying case (camera)
- Large carrying case (handgrip)
Downloads
| Thermal Master X3 data sheet |  (431.97 KB) | Download |
| Infiray Mobile App Installation Instructions | (47.12 KB) | Download |
