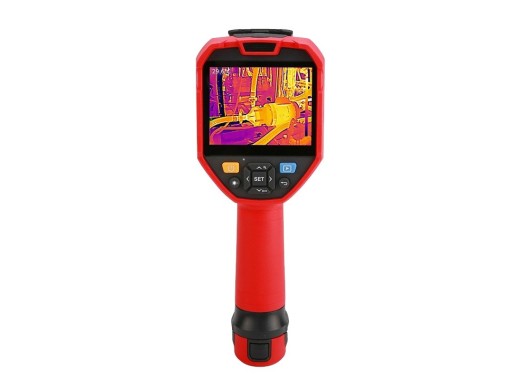

UNI-T UTi720V thermal imaging camera
Details
The UNI-T UTi720V is a handheld IR thermal camera from the UTi700V series that can measure temperatures in the range of -20 °C - 550°C. The UTi720V features a 5MP camera, with a digital zoom of 2x and 4x, providing a high IR resolution of max. 256 x 192 pixels. It is rated IP54 protection, 2 meter drop resistance and has additional functions such as laser ranging, Hi/Lo temperature tracking and multiple image modes. Furthermore, it has a 3.5" LCD touchscreen with a resolution of 640 x 480, a speaker, a microphone and a 5200mAh detachable battery pack. The detachable battery pack is very convenient for easy and quick battery change, allowing continuous work for long periods. The UTi720V can capture high-quality photos and record videos in both the infrared and visible light spectrum, in JPG format for image or AVI format for video. The built-in microphone also allows for audio to be recorded alongside the video. These photos and videos can be transferred either via Wi-Fi to your mobile device or PC or even streamed and viewed in real-time. The UTi720V also has a 32GB micro SD card to store files directly on the device.
To inspect electronics with the UNI-T UTi720V, there is also a Macro lens sold separately.
Model overview
| Models | UTi720V | UTi730V |
|---|---|---|
| Temperature range | -20 to 550 °C | -40 to 400 °C |
| IR resolution | 256 x 192 (49152 pixels) | 320 x 240 (76800 pixels) |
| Frame rate | ≤ 25 Hz | ≤ 9 Hz |
| FOV | 56° x 42.2° | 56° x 42° |
| NETD | ≤ 50 mK | ≤ 65 mK |
| Price |
Specifications
| Accuracy | ±2 °C or ±2% (whichever is greater) |
| Display | 3.5" IPS Touch (640 × 480 pixels) |
| Colour palettes | White Hot, Black Hot, Red Hot, Ironbow, Rainbow HC, Rainbow, Lava |
| Storage | 32GB micro-SD card |
| Battery | ≥ 4 hours (with Wi-Fi off) |
| Dimensions | 260 × 97 × 99 mm |
| Weight | 654 g |
Accessories
The UTi720V includes
- Charger
- USB-C cable
- 32 GB MicroSD card
- 2x Li-ion battery pack
- Impact-proof storage case
Pros and cons
- Video and audio recording
- Allows streaming in real-time
Downloads
| UTi700V series - Quick start guide |  (34.69 MB) | Download |
| UTi700V series - Datasheet | (3.94 MB) | Download |
