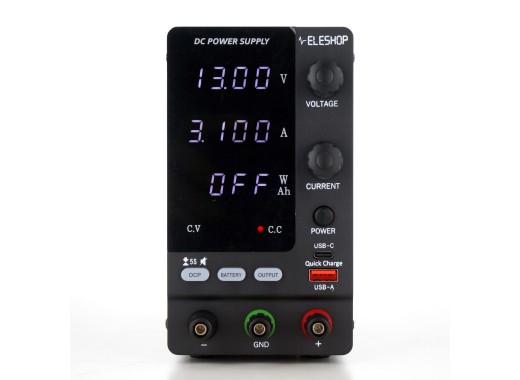

ELE-PSU3010CH lab power supply
Details
The ELE-PSU3010CH is an affordable lab power supply from Eleshop, and is a good budget choice for hobby, education and service work. Furthermore, this single-channel supply delivers up to 30V and 10A for 300W total, set with stepless coarse and fine control down to 10mV and 1mA and shown on a 4-digit LCD, with automatic CV and CC switching, overcurrent protection, an output switch and a panel lock.
The battery charging function sets this model apart. This supply protects against reverse polarity connection, so a battery connected the wrong way round does not damage the supply or the cell. Charging stops automatically once the battery is full, which prevents overcharging when a pack is left connected, and the delivered charge is shown in Ah so the energy put back into the battery can be read directly. A 5V/2A USB-A port and a USB-C port on the front panel also power or charge external devices.
Model overview
| Model | ELE-PSU3010B | ELE-PSU3010W | ELE-PSU3010CH |
|---|---|---|---|
| Output switch | No |
Yes |
Yes |
| Battery charging function | No |
No |
Yes |
| USB-C connector | No |
No |
Yes |
| Protection | None | None | OCP |
| Price |
Specifications
| Total power | 300 W |
| Outputs | 1 |
| Type | Switching |
| Voltage range | 0 - 30 V |
| Current range | 0 - 10 A |
| Resolution | 10 mV / 1 mA |
| Ripple | ≤ 15 mVrms, ≤ 15 mArms |
| Display | 4-digit LCD |
| Dimensions | 213 x 85 x 155 mm |
| Weight | 1.2 kg |
Accessories
The ELE-PSU3010CH comes by default with:
- Set of 4mm to alligator clip test leads
- Power cord
Pros and cons
- Battery charging function
- Output switch per channel
Downloads
