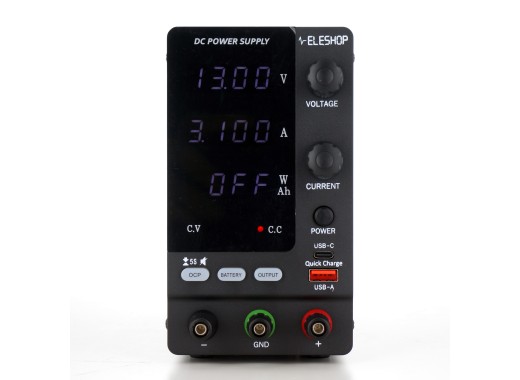

ELE-PSU6005CH lab power supply
Details
The ELE-PSU6005CH is a single-channel, switching DC power supply designed for use in labs, workshops, and educational environments. As a switching-mode power supply, it is compact and lightweight, which is ideal for bench-top use. This design offers high efficiency but comes with a higher ripple than traditional linear power supplies, making it best suited for general electronics applications.
The single output channel provides up to 60V and 5A, with a maximum power output of 300W. Voltage and current can be adjusted smoothly using digital rotary encoders with stepless control, with fine resolution down to 10mV and 1mA. Readouts for voltage and current are clearly shown on a 4-digit LCD. This model supports precise and stable output for demanding applications without the need for multiple channels.
The PSU supports constant voltage (CV) and constant current (CC) modes with automatic switching between them depending on the load. It includes an output switch, over-current protection (OCP), and a dedicated battery charging mode. A panel lock function helps prevent accidental changes, and the front panel also features a 5V / 2A USB-A and USB-C charging port for powering external devices. This power supply is a great choice for users who value accuracy, compactness, and ease of use in a single-channel setup.
Model overview
| Model | ELE-PSU3010CH | ELE-PSU6005CH |
|---|---|---|
| Voltage range | 0 - 30 V | 0 - 60 V |
| Current range | 0 - 10 A | 0 - 5 A |
| Ripple | ≤ 15 mVrms, ≤ 15 mArms | ≤ 20 mVrms, ≤ 20 mArms |
Specifications
| Total power | 300 W |
| Outputs | 1 |
| Output switch | Yes |
| Type | Switching |
| Resolution | 10 mV / 1 mA |
| Protection | OCP |
| Display | 4-digit LCD |
| Dimensions | 213 × 85 × 155 mm |
| Weight | 1.2 kg |
Accessories
The ELE-PSU6005CH comes by default with:
- EU power cord
- 4 mm to alligator clip test leads
Pros and cons
- Battery charging function
- Output switch per channel
Downloads
