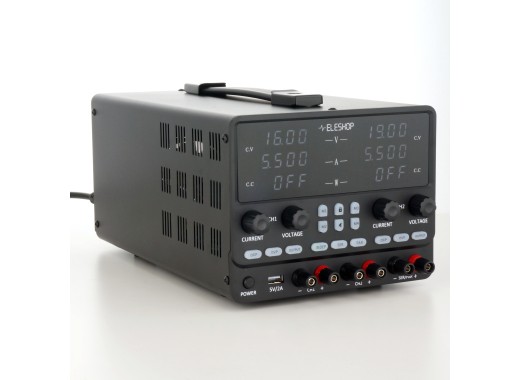

ELE-PSU3010D lab power supply
Details
Please note: the product looks similar to the product in the pictures.
The ELE-PSU3010D is a dual-channel, switching DC power supply designed for use in labs, workshops, and educational environments. As a switching-mode power supply, it is compact and lightweight, which is ideal for bench-top use. This design offers high efficiency but comes with a higher ripple than traditional linear power supplies, making it best suited for general electronics applications.
Each of the two output channels provides up to 30V and 10A, with a combined maximum power output of 600W. The voltage and current can be adjusted smoothly using digital rotary encoders with stepless control, with fine resolution down to 10mV and 1mA. Readouts for voltage, current, and power are clearly shown on 4-digit LCDs for both channels. The channels can also be used in series or parallel mode to increase voltage or current output.
The PSU supports constant voltage (CV) and constant current (CC) modes with automatic switching between them depending on the load. It also includes independent output switches for each channel, over-voltage and over-current protection (OVP/OCP), and 8 memory presets. The unit also features a panel lock to prevent accidental changes, and a dedicated 5V / 2A USB charging port for external devices. This power supply is a great choice for users who prioritise high power and operational convenience at a competitive price, with a trade-off in measurement accuracy in favour of power and flexibility.
Model overview
| Model | ELE-PSU3005D | ELE-PSU3010D |
|---|---|---|
| Total power | 300 W | 600 W |
| Current range (per channel) | 0 – 5 A | 0 – 10 A |
| Ripple | ≤ 10 mVrms, ≤ 10 mArms | ≤ 15 mVrms, ≤ 15 mArms |
| Price |
Specifications
| Voltage range (per channel) | 0 - 30 V |
| Output switch | Each channel |
| Outputs | 2 |
| Type | Switching |
| Resolution | 10 mV / 1 mA |
| Accuracy | CV: ≤ 0.05% + 10 mV CC: ≤ 0.01% + 10 mA |
| Protection | OVP, OCP |
| Display | 4-digit LCD (per channel) |
| USB port | 5 V / 2 A charging output |
| Memory groups | 8 |
| Dimensions | 240 × 125 × 130 mm |
| Weight | 2.75 kg |
Accessories
The ELE-PSU3010D comes by default with:
- 1x EU power cord
- 2x 4 mm to alligator clip test leads
- 1x USB-A to alligator clip cable
Pros and cons
- Light-weight
- Output switch per channel
- High ripple
Downloads
| ELE-PSU3000D user manual v1.2.2 |  (1.14 MB) | Download |
