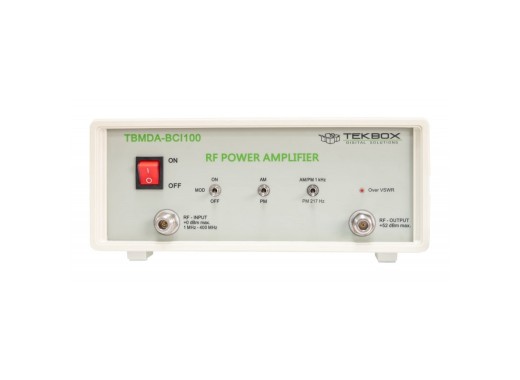

Tekbox TBMDA-BCI100 modulated wideband power amplifier
Details
The Tekbox TBMDA-BCI100 modulated wideband power amplifier provides the necessary modulation and bandwidth for accurate immunity testing (per ISO 11452-4) with BCI probes. Designed to be driven by a signal generator, a tracking generator (through the internal AM / PM modulator) or a spectrum analyser, it operates from 1 MHz to 400 MHz. With a 1dB compression point up to 110W, it can also generate test levels up to Level IV with AM and Level IV with CW.
Furthermore, it has sufficient gain to achieve maximum output power with 0 dBm provided by a spectrum analyser tracking generator. In PM mode, the amplifier can also generate a 217 Hz signal with 12.5% duty cycle in order to simulate mobile phone TDMA noise.
Specifications
| Max. input power | +0 dBm |
| Frequency range | 1 MHz - 400 MHz |
| Maximum output power @ Pin = 0 dBm | 1 MHz - 50.7 dBm (117.5 W) typ. 10 MHz - 50.7 dBm (117.5 W) typ. 50 MHz - 50.8 dBm (120.2 W) typ. 100 MHz - 50.7 dBm (117.5 W) typ. 150 MHz - 50.8 dBm (120.2 W) typ. 200 MHz - 50.5 dBm (112.2 W) typ. 250 MHz - 50.5 dBm (112.2 W) typ. 300 MHz - 50.6 dBm (114.8 W) typ. 350 MHz - 50.6 dBm (114.8 W) typ. 400 MHz - 49.5 dBm (89.1 W) typ. |
| 1 dB output compression point | 1 MHz - 50.5 dBm typ. 10 MHz - 50.5 dBm typ. 50 MHz - 50.8 dBm typ. 100 MHz - 50.7 dBm typ. 150 MHz - 50.5 dBm typ. 200 MHz - 49.8 dBm typ. 250 MHz - 49.8 dBm typ. 300 MHz - 49.7 dBm typ. 350 MHz - 49.8 dBm typ. 400 MHz - 48.6 dBm typ. |
| Harmonics | 2nd harmonic, 100 MHz, Pout = 44.0 dBm: < -20.2 dBc typ. 2nd harmonic, 100 MHz, Pout = 50.0 dBm: < -16.3 dBc typ. 3rd harmonic, 100 MHz, Pout = 44.0 dBm: < -12.2 dBc typ. 3rd harmonic, 100 MHz, Pout = 50.0 dBm: < -11.9 dBc typ. |
| Internal modulation frequency | AM: 1 kHz ±20% PM: 1 kHz ±20%, 217 Hz ±20% |
| Duty cycle (PM) | 1 kHz - 50% ±10% 217 Hz - 12.5% ±20% |
| Dimensions | 485 x 310 x 135 mm |
| Weight | 10.5 kg |
Accessories
The Tekbox TBMDA-BCI100 comes with:
- 2x 75 cm N-male to N-male cables
- 1x 6 dB attenuator
- 1x 40 dB / 250 W attenuator with N-connectors
- 1x C13 Schuko power cord
Pros and cons
- Allows conducted immunity testing with BCI-probes.
- Allows radiated immunity testing with near-field probes and TEM Cells.
- Capable of simulating mobile phone TDMA noise.
- Can be damaged by open or shorted loads
Downloads
| TBMDA-BCI100 user manual |  (1.17 MB) | Download |
