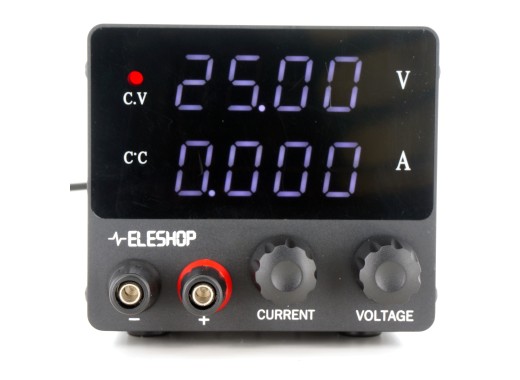

ELE-PSU305C lab power supply
Details
The ELE-PSU305C is a very compact, switched-mode DC power supply with a range up to 30V and 5A, with a resolution of 0.1V/10mA. It uses 2 stepless controls for the voltage and current. However, instead of potmeter controls as with the ELE-PSU3010W, this product uses the more accurate encoder controls. Turn the knob to change and then push to select a value. It uses a 4-digit display for accurately displaying the voltage and current. The power supply is designed to be used in laboratories, schools, product lines and other electronics workplaces.
Specifications
| Total power | 150 W |
| Outputs | 1 |
| Output switch | No |
| Voltage range | 0 - 30 V |
| Current range | 0 - 5 A |
| Resolution | 0.1 V / 10 mA |
| Ripple | ≤ 50 mVrms / ≤ 50 mArms |
| Display | 4-digit LCD |
| Dimensions | 200 x 90 x 83.5 mm |
| Weight | 0.69 kg |
Accessories
The ELE-PSU305C comes by default with:
- EU power cord
- Set test leads (4mm to alligator clip)
Pros and cons
- Very compact
- Encoder control knobs
