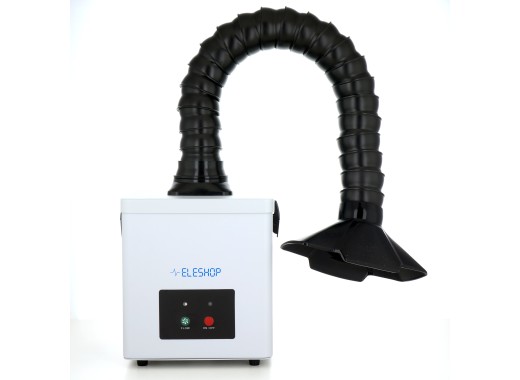

ELE-FU2 compact fume extractor
Details
The ELE-FU2 compact fume extractor is suitable for applications where harmful fumes are produced, such as soldering. The extractor provides high airflow in a compact form factor. The device features 3 airflow speeds, which can be selected using the airflow button on the unit.
This fume extractor contains 2 different filters; a cotton pre-filter and a main filter, which is a combination of a HEPA and carbon filter, which removes 99,97% of particles >0,3µm. The compact design, combined with the high airflow, makes this fume extractor ideal for workplaces where harmful fumes are produced and space is limited. The tube is 60cm long and can easily be adjusted for the optimal position.
This compact fume extractor is not ESD-safe. For an ESD-safe fume extractor, you can look at the FE1B ESD-safe soldering extractor.
Specifications
| Inlets | 1 |
| Power | 60 W |
| Airflow (measured by Eleshop) | 61 m3/h (low) 97 m3/h (mid) 110 m3/h (high) |
| Speed control | Button |
| Noise level (measured by Eleshop) | 54.0 dB (low) 63.0 dB (mid) 70.9 dB (high) |
| Filters | Cotton pre-filter + HEPA / carbon filter |
| Filter efficiency | 99,97% of particles >0,3 µm |
| ESD safe | No |
| Tube length | 0.6 m |
| Dimensions | 184 x 184 x 216 mm |
| Weight | 3.01 kg |
Buy your ELE-FU2 spare-filter set here
Accessories
The ELE-FU2 includes:
- 5x Cotton pre-filter
- 1x Main HEPA/carbon combination filter
- 1x Extraction tube 60cm + suction nozzle
- 1x Power cord 1.5m
Pros and cons
- High airflow
- Compact design
- Up to 99.97% efficiency due to the HEPA filter
- Not ESD-safe
Downloads
| ELE-FU2 fume extractor user manual |  (899.91 KB) | Download |
