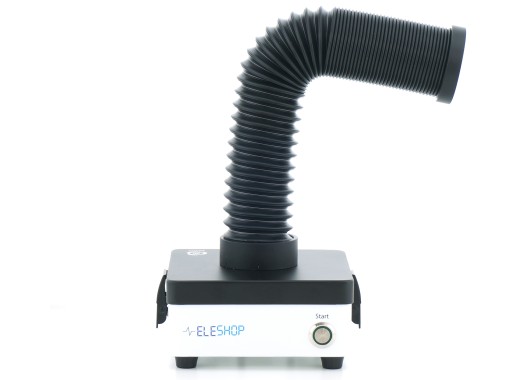

ELE-FU1 Desktop fume extractor
Details
The ELE-FU1 Desktop fume extractor is suitable for applications where harmful fumes are produced such as soldering or laser cutting. The fume extractor is equiped with three seperate filters: a cotton pre filter followed by a HEPA filter and the main carbon activated filter. Can be used indoors due to the presence of the built-in air circulation filters. The tube can very easily be extended, retracted and turned as required. The airflow is quite decent especially in this price range.
This desktop fume extractor is not ESD safe. For an ESD safe fume extractor, you can look at the FE1B ESD safe soldering extractor.
Specifications
| Inlets | 1 |
| Power | 15 W |
| Airflow (measured by Eleshop) | 78.4 m3/h |
| Noise level (measured by Eleshop) | 61.0 dB |
| Inner diameter end of tube | 49 mm |
| Outer diameter end of tube | 66 mm |
| Dimensions | 153 x 153 x 76,5 mm |
| Weight | 1.2 kg |
| Filter | Cotton pre filter + HEPA (H10) filter + active carbon filter |
Buy here your ELE-FU1 prefilter
Noise production
| Noise production (dBA) | Sound clip | |
|---|---|---|
| 61.0 dBA |
Accessories
The ELE-FU1 includes:
- 1 x Active carbon filter
- 1 x HEPA filter (H10)
- 6 x Cotton filters
- Extraction tube
- Power supply
Pros and cons
- Compact size
- Great price-performance ratio
- Loud (61.0 dBA at 1m distance)
- Lower airflow compared to fume extractors in a higher segment (78.4 m3/h)
Downloads
| Desktop extractor manual |
 (1.93 MB) |
Download |
