Rigol MSO9402 oscilloscope
Details

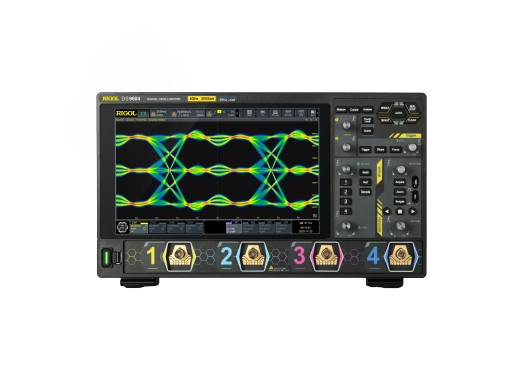

Please note: the product images shown display the Rigol DS9604; the Rigol MSO9402 is visually comparable, with the exception of having 2 analog channels instead of 4.
The Rigol MSO9402 is a premium mixed-signal oscilloscope with 4GHz bandwidth, 20GSa/s sampling, 2 analog and 16 digital channels, 500Mpts standard memory (upgradable to 2Gpts), and an integrated 2-channel arbitrary waveform generator, suitable for all R&D, validation, and production test work involving high-speed digital, protocol analysis, or compliance testing.
The MSO9000 is the successor to Rigol's MSO8000A series, built on a newly developed acquisition platform with a vertical resolution that scales from 8 to 16 bits in high resolution mode and standard hardware mask testing. As a mixed-signal oscilloscope, the MSO9402 combines analog scope channels with 16 digital logic channels in a single instrument, making it well-suited for embedded systems debug, microcontroller and FPGA validation, mixed-domain power management, and any application where digital control signals interact with analog measurements. The integrated 2-channel arbitrary waveform generator turns it into a self-contained test bench. Options are available for eye diagram analysis, jitter analysis, and compliance testing for USB 2.0, Ethernet, Automotive Ethernet, and MIPI D-PHY. A built-in web server allows remote control and monitoring over LAN. If you'd like help choosing the right model for your application or want to order any of the options, please contact us.
Model overview
| DS9202 | DS9204 | DS9404 | DS9604 | MSO9402 | |
|---|---|---|---|---|---|
| Bandwidth | 2 GHz | 2.5 GHz | 4 GHz | 6 GHz | 4 GHz |
| Channels | 2 | 4 | 4 | 4 | 2 |
| Digital channels | No | No | No | No | 16 channels |
| Sample rate | 10 GSa/s | 20 GSa/s | 20 GSa/s | 20 GSa/s | 20 GSa/s |
| Memory depth | 10 Mpts | 500 Mpts | 500 Mpts | 500 Mpts | 500 Mpts |
| Arbitrary waveform generator | No | No | No | No | 2 channels, 50 MHz |
| Price |
Specifications
| Waveform capture rate | 1,000,000 wfms/s |
| Vertical resolution | 8 bits (9 - 16 bits in high resolution mode) |
| Vertical scale | 1 mV/div - 10 V/div |
| Horizontal scale | 50 ps/div - 500 s/div |
| Interfaces | USB host/device, LAN, HDMI, AUX Out |
| Decoding options | RS232/UART, I2C, SPI, CAN |
| Display | 10.1-inch touchscreen (1280x800) |
| Dimensions | 358 x 215 x 125 mm |
| Weight | 5.3 kg |
Accessories
The Rigol MSO9402 oscilloscope comes with the following accessories:
- 2x RP3500A 500 MHz passive probe
- 1x Power cable
Pros and cons
- Integrated 16-channel logic analyser
- Integrated 2-channel arbitrary waveform generator
- 500 Mpts memory, upgradable to 2 Gpts
- Logic analysis probe sold separately
Downloads
| Rigol DS9000 datasheet |  (17.73 MB) | Download |
| Rigol DS9000 quick guide | (6.84 MB) | Download |
