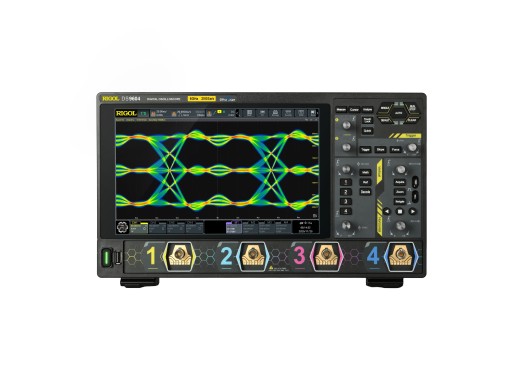

Rigol DS9604 oscilloscope
Details
The Rigol DS9604 is a premium oscilloscope with 6GHz bandwidth, 20GSa/s sampling, 4 analog channels, and 500Mpts standard memory (upgradable to 2Gpts), suitable for all R&D, validation, and production test work involving high-speed digital, protocol analysis, or compliance testing.
The DS9000 is the successor to the MSO8000A series, built on a newly developed acquisition platform with a vertical resolution that scales from 8 to 16 bits in high resolution mode and standard hardware mask testing. It is built for R&D engineers validating high-speed digital designs, characterising power supplies, and running production-test routines where deep memory and fast capture matter. Options are available for eye diagram analysis, jitter analysis, and compliance testing for USB 2.0, Ethernet, Automotive Ethernet, and MIPI D-PHY. A built-in web server allows remote control and monitoring over LAN. If you'd like help choosing the right model for your application or want to order any of the options, please contact us.
Model overview
| DS9202 | DS9204 | DS9404 | DS9604 | MSO9402 | |
|---|---|---|---|---|---|
| Bandwidth | 2 GHz | 2.5 GHz | 4 GHz | 6 GHz | 4 GHz |
| Channels | 2 | 4 | 4 | 4 | 2 |
| Digital channels | No | No | No | No | 16 channels |
| Sample rate | 10 GSa/s | 20 GSa/s | 20 GSa/s | 20 GSa/s | 20 GSa/s |
| Memory depth | 10 Mpts | 500 Mpts | 500 Mpts | 500 Mpts | 500 Mpts |
| Arbitrary waveform generator | No | No | No | No | 2 channels, 50 MHz |
| Price |
Specifications
| Waveform capture rate | 1,000,000 wfms/s |
| Vertical resolution | 8 bits (9 - 16 bits in high resolution mode) |
| Vertical scale | 1 mV/div - 10 V/div |
| Horizontal scale | 50 ps/div - 500 s/div |
| Interfaces | USB host/device, LAN, HDMI, AUX Out |
| Decoding options | RS232/UART, I2C, SPI, CAN |
| Display | 10.1-inch touchscreen (1280x800) |
| Dimensions | 358 x 215 x 125 mm |
| Weight | 5.3 kg |
Accessories
The Rigol DS9604 oscilloscope comes with the following accessories:
- 4x RP3500A 500 MHz passive probe
- 1x Power cable
Pros and cons
- 1,000,000 wfms/s waveform capture rate
- 500 Mpts memory, upgradable to 2 Gpts
- 16-bit vertical resolution mode
- 20 GSa/s drops to 10 GSa/s with 4 channels active
Downloads
| Rigol DS9000 datasheet |  (17.73 MB) | Download |
| Rigol DS9000 quick guide | (6.84 MB) | Download |
