Rigol MSO8074A oscilloscope
Promotion! The Rigol MSO8000A series oscilloscopes now include a free MSO8000-BND option bundle! The bundle will be automatically added to your shopping cart. Promotion valid until December 31st 2026.
Details

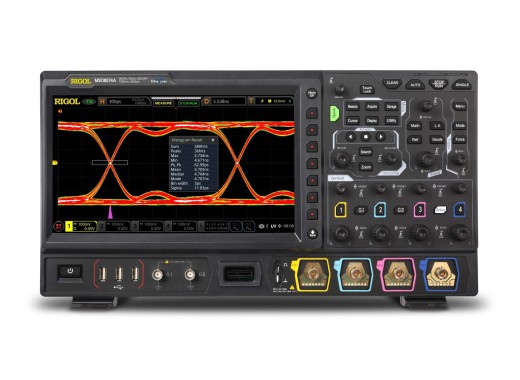

The Rigol MSO8074A is a high-end oscilloscope with a 750MHz bandwidth, a very high memory depth of 500Mpts and a 10GS/s sample rate. Moreover, this oscilloscope has 4 analog channels and integrates 7 independent instruments into 1 device. These instruments include an oscilloscope, a 16-channel logic analyser, a spectrum analyser, an arbitrary waveform generator, a digital voltmeter, a 6-digit frequency counter and totaliser and a protocol analyser.
Furthermore, the MSO8074A offers a high-quality 10.1" capacitive multi-touch screen with a 256-level intensity grading display and colour persistence. The MSO8074A can perform real-time eye diagrams and jitter analyses. This oscilloscope has multiple interfaces, allowing it to be connected to a PC for transferring measurement results. In addition, the data can be stored on a USB memory stick via the USB port on the front.
Model overview
| Model | MSO8074A | MSO8154A | MSO8204A |
|---|---|---|---|
| Bandwidth | 750 MHz | 1.5 GHz | 2 GHz |
| Price |
Specifications
| Analog channels | 4 |
| Digital channels | 16(Probe opt.) |
| Memory depth | 500 Mpts |
| Sample rate | 10GS/s |
| Waveform capture rate | 600.000 wfms/s |
| Vertical resolution | 8 bits |
| Vertical scale | 1 mV/div - 10 V/div |
| Horizontal scale | 500 ps/div - 1 ks/div |
| Interfaces | USB, LAN, HDMI |
| Decoding options (optional) | I2C, SPI, UART/RS232, CAN, CAN-FD, LIN, FlexRay, I2S, and MIL- STD-1553 |
| Display | 10.1" LCD (1024 x 600) |
| Dimensions | 410 x 224 x 135 mm |
| Weight | 4.0 kg |
Options
| 16 channel logic probe (hardware) | RPL2316 | |
| Serial protocol analysis bundle (software) | MSO8000-BND | |
| 750MHz to 1.5GHz bandwidth upgrade (software) | MSO8000A-BW7T15 | |
| 1.5 GHz to 2 GHz bandwidth upgrade (software) | MSO8000A-BW15T20 | |
| 2 GHz to 3 GHz bandwidth upgrade (software) | MSO8000A-BW20T30 |
Accessories
The MSO8074A comes by default with:
- USB cable
- Power cord
- 4x passive highZ 500 MHz probe
- Front protective cover
Pros and cons
- Wide bandwidth
Downloads
| Rigol MSO8000A series datasheet |  (38.05 MB) | Download |
| Rigol MSO8000A series programming guide | (4.15 MB) | Download |
| Rigol MSO8000A series user guide | (11.27 MB) | Download |
