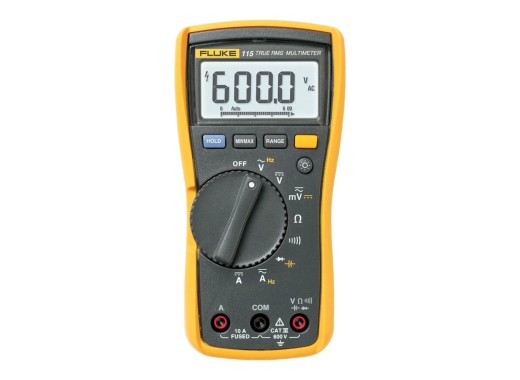

Designed by electricians, manufactured by Fluke. The Fluke 115 is a compact true rms function meter for field service technicians.
With its large number of functions, this multimeter offers the perfect solution for a wide variety of electrical and electronic testing applications.
Besides standard current and voltage measurements, this multimeter can also measure resistance, capacitance, frequency and continuity, and can perform diode tests.
The large display with white LED backlighting makes this multimeter also very suitable for use in low light environments.
In addition, the screen has an "analog" bar graph which updates 32 times per second and thus clearly shows the relationship between measured values and time.
In addition, the compact and ergonomic design of this multimeter makes it very easy to use with one hand.
Are you looking for a multimeter with non-contact voltage detection and a low impedance mode? Check out the Fluke 117 True RMS multimeter
.
Specifications
| Measuring range and precision |
| Max. DC voltage | 600 V (± 0.5% + 2) |
| Max. AC voltage | 600 V (± 1.0% + 3) True RMS function |
| Max. DC current | 10 A (± 1.0% + 3) |
| Max. AC current | 10 A (± 1.5% + 3) True rms value function |
| Max. resistance | 40 M Ω (± 0.9% + 1) |
| Max. capacitance | 9.999 µ F (± 1.9% + 2) |
| Frequency | 0.01 Hz ~ 50 kHz (± 0.1% + 2) |
| When measuring currents, it is possible to measure values up to 20 A for a maximum of 30 seconds. Then the multimeter should cool for at least 10 minutes. |
|
| Other features |
Diodes tests, continuity |
| Entrance protection |
IEC 61010-1 600 V, CAT III, pollution degree 2 |
| Screen |
6,000 points |
| Battery life |
~ 400 hours |
| Dimensions |
167 x 84 x 46 mm |
| Weight |
550 g |
Please see the information sheet below for more information.
Calibrated version
Accessories
The Fluke 115 comes standard with:
- 1x TL75 test lead set
- 9 V battery
Information on fuses
This multimeter uses a
(included ).
Downloads
(801.07 KB)
