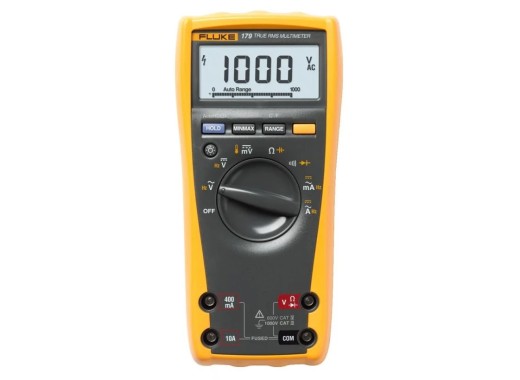

The Fluke 179 is a robust digital hand-held multimeter with a 6,000-count display and it is accurate up to 0.15% for standard measurement functions. Apart from the standard and true RMS functions for measuring volts, ohms and amperes, capacitance and frequency measurements can also be performed. Furthermore, there is a function for diode testing and you can check the continuity.
The 179 also offers temperature measurement compared to the lower models in the 170 series.
This multimeter has a fold out stand at the back and the display is large and easy to read. This multimeter uses a 9V block battery, which you can use for about 200 hours. The Fluke 179 belongs to the measurement category CAT IV to 600V and CAT III to 1000V.
Specifications
| Measuring range and accuracy |
| Max. DC Voltage | 1000 V (± 0.15% + 2) |
| Max. AC Voltage | 1000 V (± 1.0% + 3) True-RMS |
| Max. DC Current | 10 A (± 1.0% + 3) |
| Max. AC Current | 10 A (± 1.5% + 3) True-RMS |
| Max. resistance | 50 MΩ (± 0.9% + 1) |
| Max. capacitance | 9.999 µF (± 1.2% + 2) |
| Frequency | 0.01 Hz ~ 200 kHz (± 0.1% + 21) |
| Temperature | -40 °C to +400 °C (± 1% +105 |
| When measuring currents, values up to 20 A can be measured for max 30 seconds. Afterwards the meter needs to cool for at least 10 minutes. |
|
| Input protection |
EN 61010-1 to 1000 V CAT III, 600V CAT IV |
| Safety inspections |
UL, CSA, TÜV and VDE certified |
| Battery lifespan |
~200 hours |
| Dimensions |
43 x 90 x 185 mm |
| Weight |
420 g |
Calibrated version
| Fluke 179 - calibrated |
On this page you can order the calibrated version of the Fluke 179. This meter comes with an official calibration certificate. | |
Optional accessories
Accessories
The Fluke 179 will be delivered with:
- Fluke 80BK
- 9V battery
- TL75 test leads
- User manual
- Lifetime warranty from Fluke
Pros and cons
- Highly reliable
- Temperature measurement
- Pricey compared to other brands
