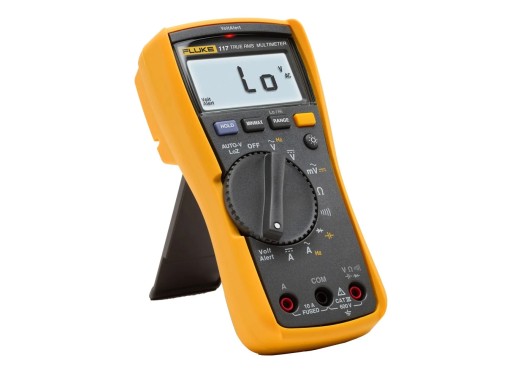

The rugged Fluke 117 multimeter has the quality you've come to expect from Fluke and is a must-have for any electrician. In addition to all the standard measurement features,
this multimeter also has a VoltAlert technology that allows contactless voltage detection and a low impedance mode that makes sure that no ghost voltages get measured. Furthermore,
the multimeter has a min, max, and average hold function which makes analyzing signal fluctuations easy.
This multimeter has a large backlit 6000 counts display on which the values, even in dark environments, can easily be read.
In addition, the values on the screen are updated every 4 seconds and the meter has a 33 segment bar graph.
The meter is powered by a 9-volt battery and has a working time of ~400 hours (without backlight).
Don't need the non-contact voltage detection and low impedance mode? Check out the cheaper Fluke 115.
Specifications
| Measuring range and accuracy |
| Max. DC voltage | 600 V (± 0.5% + 2) |
| Max. AC voltage | 600 V (± 1.0% + 3) True-RMS |
| Max. DC current | 10 A (± 1.0% + 3) |
| Max. AC current | 10 A (± 1.5% + 3) True-RMS |
| Max. Resistance | 40 MΩ (± 0.9% + 1) |
| Max. Capacitance | 9.999 µF (± 1.9% + 2) |
| Frequency | 0.01 Hz ~ 50 kHz (± 0.1% + 2) |
| When measuring currents, values up to 20 A can be measured for max 30 seconds. Afterwards the meter needs to cool for at least 10 minutes. |
|
| Other functionalities |
Diode tests, continuity, VoltAlert, LoZ-AutoVolt |
| Input protection |
IEC 61010-1 600 V
CAT III, Pollution Degree 2 |
| Display |
6,000 counts |
| Battery lifespan |
~400 hours |
| Dimensions |
167 x 84 x 550 mm |
| Weight |
550 g |
Calibrated version
Accessories
The Fluke 117 will standard be delivered including:
- 1x test lead set
- 9V battery
Fuse information
This multimeter uses a
11A 1000V fuse (included).
Pros and cons
- Contactless voltage detection
- Low impedance mode
