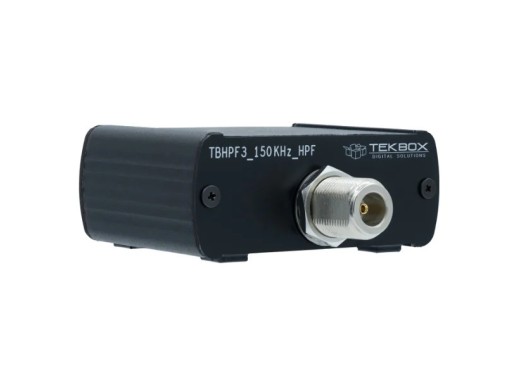

Tekbox TBHPF3-150kHz high pass filter
Details
The Tekbox TBHPF3-150kHz is a high-pass filter which passes frequencies between 135kHz - 100MHz while attenuating frequencies below the cut-off frequency. The high-pass filter is useful for protecting systems such as a spectrum analyser.
Specifications
| Bandwidth | 3 dB bandwidth: 135 kHz - 100 MHz |
| Maximum input voltage | 250 V |
| Maximum input current | 5.6 A |
| Maximum input power | at frequencies 300 kHz - 100 MHz: 10 W |
| Connections | N-male / N-female |
| Dimensions | 26 x 26 x 97 mm |
| Weight | 110 g |
Downloads
| TBHPF3 user manual |  (632.43 KB) | Download |
