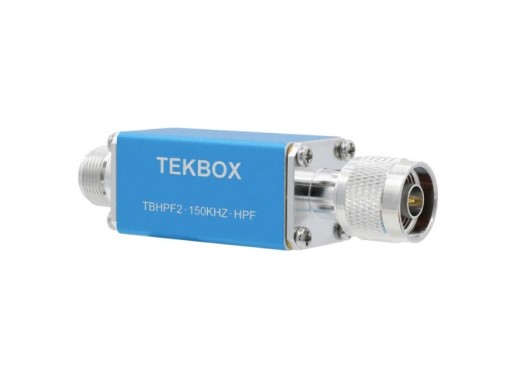

Tekbox TBHPF2-150kHz high pass filter
Details
The Tekbox TBHPF2-150kHz is a high-pass filter which passes frequencies between 135kHz - 1GHz while attenuating frequencies below the cut-off frequency. The high-pass filter is useful for protecting systems such as a spectrum analyser.
Specifications
| Bandwidth | 3 dB bandwidth: 135 kHz - 1 GHz |
| Maximum input voltage | 250 V |
| Maximum input current | 1.5 A |
| Maximum input power | at frequencies 300 kHz - 1 GHz: 10W |
| Connections | N-male / N-female |
| Dimensions | 26 x 26 x 97 mm |
| Weight | 110 g |
Downloads
| TBHPF2 user manual |  (958.12 KB) | Download |
