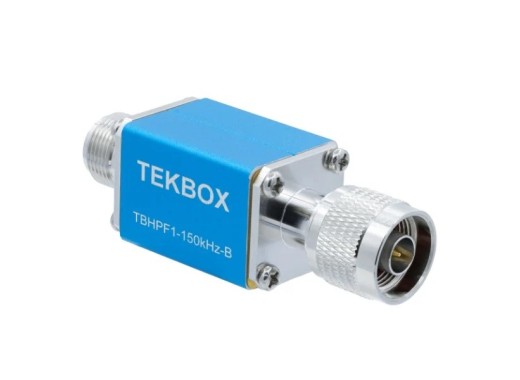

Tekbox TBHPF1-150kHz-B high pass filter

89 €89.00 Excl. VAT
Loading stock info
  •
Product number: ELE008276

Be the first to review this product

Lowest price guaranteed

Details

The Tekbox TBHPF1-150kHz-B is a high-pass filter which passes frequencies between 110kHz - 3GHz while attenuating frequencies below the cut-off frequency. The high-pass filter is useful for the protection of systems such as a spectrum analyser.

Specifications

Bandwidth 3 dB bandwidth: 110 kHz - 3 GHz
Maximum input voltage 100 V or 250 V for < 5 sec
Maximum input power at frequencies 110 kHz - 3 GHz: 10W
Connections N-male / N-female
Dimensions 26 x 26 x 82 mm
Weight 100 g

Downloads

Tekbox TBHPF1-150kHz-B manual
pdf (699.42 KB)Download
