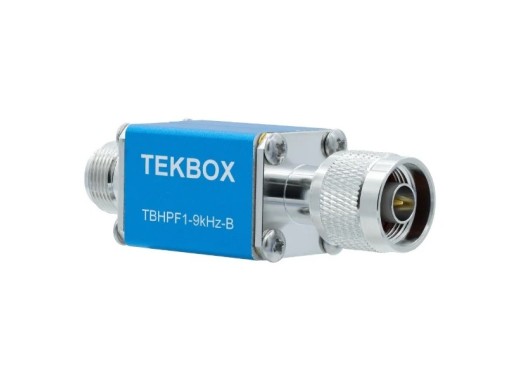

Tekbox TBHPF1-9kHz-B high pass filter
Details
The Tekbox TBHPF1-9kHz-B is a high-pass filter which passes frequencies between 9kHz - 1GHz while attenuating frequencies below the cut-off frequency. The high-pass filter is useful for the protection of systems such as a spectrum analyser.
Specifications
| Bandwidth | 3 dB bandwidth: 9 kHz - 1 GHz |
| Maximum input voltage | 100 V or 250 V for < 5 sec |
| Maximum input power | at frequencies 9 kHz - 1 GHz: 10W |
| Connections | N-male / N-female |
| Dimensions | 26 x 26 x 82 mm |
| Weight | 100 g |
Downloads
| Tekbox TBHPF1-9kHz-B manual |  (665.46 KB) | Download |
