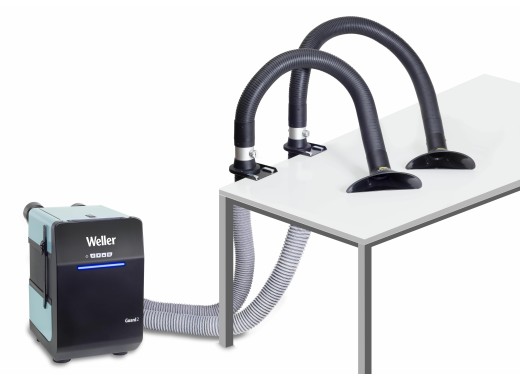

Weller ZeroSmog Guard 2 Kit2 ALFA
Details
The Weller ZeroSmog Guard 2 Kit2 ALFA is an industrial-quality fume extractor designed for laboratories, workshops, and industrial environments. It is suitable for applications where harmful fumes need to be removed, such as laser engraving and soldering. It efficiently removes the harmful fumes to improve the air quality. The Guard operates with 142W power, delivering an airflow of up to 200m3/h, divided over 2 inlets. The airflow can be set using the buttons on the unit, an airflow indication is given with the LED status bar. Also, the set includes two 1.5m extraction tubes for easy positioning and direct fume capture.
The ZeroSmog Guard 2 uses multiple filter layers to clean the air from harmful fumes and gases. It is equipped with a H13 HEPA filter with activated carbon and Potassium Permanganate, which captures 99.95% of airborne particles. Additionally, an ePM1-75% pre-filter traps larger particles to extend the life of the main filter.
The Guard Kit2 also includes on-desk shut-off valves. The included desk valves allow for easy control and access, and the design of the extractor makes the filter replacement process simple.
Model overview
The Weller ZeroSmog Guard series consists of 3 models, different in the power, airflow, noise level, and number of inlets.
| Model | ZeroSmog Guard Light Kit1 ALFA | ZeroSmog Guard Kit1 ALFA | ZeroSmog Guard 2 Kit2 ALFA |
|---|---|---|---|
| Inlets | 1 | 1 | 2 |
| Power | 74 W | 74 W | 142 W |
| Airflow | 100 m3/h | 100 m3/h | 200 m3/h |
| Speed control | No | Yes | Yes |
| Noise level | 65 - 70 dBA | 65 - 70 dBA | 65 - 70 dBA |
| Main filter | Standard HEPA | Wideband gas HEPA | Wideband gas HEPA |
| Communication with soldering stations | No | WT, WX, WXsmart | WT, WX, WXsmart |
| Price |
Specifications
| Filters | ePM1-75% pre-filters and mainfilter (H13 active carbon + Potassium Permanganate) |
| Filter efficiency | 99.95% of particles >0.3 μm |
| ESD safe | Yes |
| Tube length | 1.5 m |
| Dimensions | 270 x 336 x 435 mm |
| Weight | 9.5 kg |
Buy your Weller ZeroSmog Guard standard filter set here
Buy your Weller ZeroSmog Guard wideband gas filter set here
Accessories
The Weller ZeroSmog Guard 2 Kit2 ALFA comes with:
- 1x Main filter (HEPA H13 wideband gas filter)
- 5x ePM1-75% pre-filters
- 2x ALFA nozzle
- 2x 0F10 hose
- 2x WFV desk mounted shut-off valve
- 2x 3m flexible hose
Pros and cons
- Industrial quality
- Quite loud
- Flexible tube, so it does not hold position
Downloads
| Weller ZeroSmog user manual |  (8.89 MB) | Download |
| Weller ZeroSmog Kit2 datasheet | (2.05 MB) | Download |
