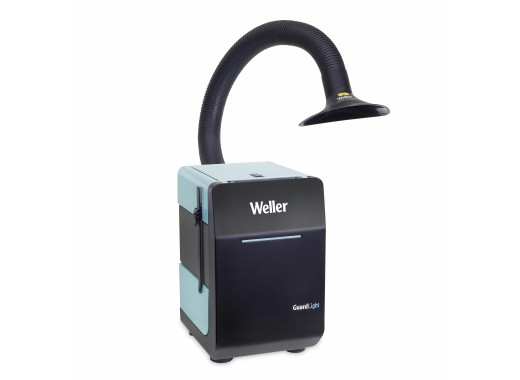

Weller ZeroSmog Guard Light Kit1 ALFA
Details
The Weller ZeroSmog Guard Light Kit1 ALFA is an industrial-quality fume extractor designed for laboratories, workshops, and industrial environments. It is suitable for applications where harmful fumes need to be removed such as laser engraving and soldering. It efficiently removes the harmful fumes to improve the air quality. The Guard Light has a power of 74W, delivering an airflow of up to 100 m3/h. It features a single-airflow operation controlled via an on/off switch and includes a 1.5m extraction tube for easy positioning and direct fume capture.
The ZeroSmog Guard Light uses multiple filter layers to clean the air from harmful fumes. It is equipped with an H13 HEPA filter with activated carbon, which captures 99.95% of airborne particles. Additionally, an ePM1-75% pre-filter traps larger particles to extend the life of the main filter.
The Guard kit also includes a desk clamp to secure the tube to a desk.
Model overview
The Weller ZeroSmog Guard series consists of 3 models, different in the power, airflow, noise level, and number of inlets.
| Model | ZeroSmog Guard Light Kit1 ALFA | ZeroSmog Guard Kit1 ALFA | ZeroSmog Guard 2 Kit2 ALFA |
|---|---|---|---|
| Inlets | 1 | 1 | 2 |
| Power | 74 W | 74 W | 142 W |
| Airflow | 100 m3/h | 100 m3/h | 200 m3/h |
| Speed control | No | Yes | Yes |
| Noise level | 65 - 70 dBA | 65 - 70 dBA | 65 - 70 dBA |
| Main filter | Standard HEPA | Wideband gas HEPA | Wideband gas HEPA |
| Communication with soldering stations | No | WT, WX, WXsmart | WT, WX, WXsmart |
| Price |
Specifications
| Filters | ePM1-75% pre-filters and Activated carbon + HEPA (H13) |
| Filter efficiency | 99.95% of particles >0.3 μm |
| ESD safe | Yes |
| Tube length | 1.5 m |
| Dimensions | 270 x 336 x 435 mm |
| Weight | 9.5 kg |
Buy your Weller ZeroSmog Guard standard filter set here
Buy your Weller ZeroSmog Guard wideband gas filter set here
Accessories
The Weller ZeroSmog Guard Light Kit1 ALFA comes with:
- 1 x Main filter (HEPA H13 standard filter)
- 5 x ePM1-75% pre-filters
- 1 x ALFA nozzle
- 1 x 0F15 Hose
- 1 x Desk clamp
Pros and cons
- Industrial quality
- Quite loud
- Flexible tube, so it does not hold position
Downloads
| Weller ZeroSmog user manual |  (8.89 MB) | Download |
| Weller ZeroSmog Light Kit1 datasheet | (938.53 KB) | Download |
