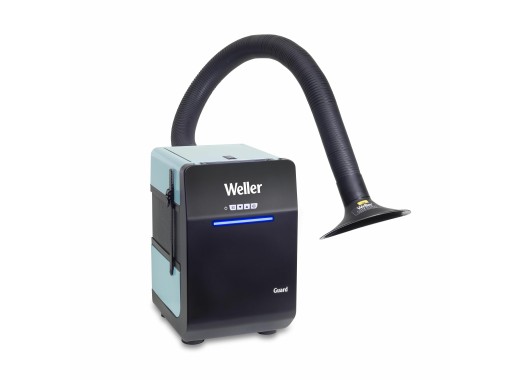

Weller ZeroSmog Guard Kit1 ALFA
Details
The Weller ZeroSmog Guard Kit1 ALFA is an industrial-quality fume extractor designed for laboratories, workshops, and industrial environments. It is suitable for applications where harmful fumes need to be removed, such as laser engraving and soldering. It efficiently removes harmful fumes to improve the air quality. The Guard has a power of 74W, delivering an airflow of up to 100 m3/h. The airflow can be set using the buttons, an airflow indication is given with the LED status bar. Also, the kit includes a 1.5m extraction tube for easy positioning and direct fume capture.
The ZeroSmog Guard uses multiple filter layers to clean the air from harmful fumes. It is equipped with a H13 HEPA filter with activated carbon and Potassium Permanganate, which captures 99.95% of airborne particles. Additionally, an ePM1-75% pre-filter traps larger particles to extend the life of the main filter.
The Guard kit also includes a desk clampto secure the tube to a desk, together with on-desk shut-off valves.
Model overview
The Weller ZeroSmog Guard series consists of 3 models, different in the power, airflow, noise level, and number of inlets.
| Model | ZeroSmog Guard Light Kit1 ALFA | ZeroSmog Guard Kit1 ALFA | ZeroSmog Guard 2 Kit2 ALFA |
|---|---|---|---|
| Inlets | 1 | 1 | 2 |
| Power | 74 W | 74 W | 142 W |
| Airflow | 100 m3/h | 100 m3/h | 200 m3/h |
| Speed control | No | Yes | Yes |
| Main filter | Standard HEPA | Wideband gas HEPA | Wideband gas HEPA |
| Communication with soldering stations | No | WT, WX, WXsmart | WT, WX, WXsmart |
| Price |
Specifications
| Filters | ePM1-75% pre-filters and mainfilter (H13 active carbon + Potassium Permanganate) |
| Filter efficiency | 99.95% of particles >0.3 μm |
| ESD safe | Yes |
| Tube length | 1.5 m |
| Dimensions | 270 x 336 x 435 mm |
| Weight | 9.5 kg |
Buy your Weller ZeroSmog Guard standard filter set here
Buy your Weller ZeroSmog Guard wideband gas filter set here
Accessories
The Weller ZeroSmog Guard Kit1 ALFA comes with:
- 1x Main filter (HEPA H13 wideband gas filter)
- 5x ePM1-75% pre-filters
- 1x ALFA nozzle
- 1x 0F15 Hose
- 1x Desk clamp
- 1x Shut-off valve
Pros and cons
- Industrial quality
- Quite loud
- Flexible tube, so it does not hold position
Downloads
| Weller ZeroSmog user manual |  (8.89 MB) | Download |
| Weller ZeroSmog Kit1 datasheet | (156.91 KB) | Download |
