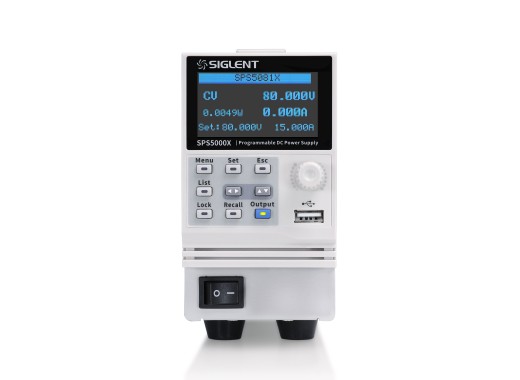

The SPS5081X from Siglent is a single channel programmable switching DC power supply with a maximum voltage of 80 V, a maximum current of 15 A and a maximum power of 360 W. This power supply can be connected in series (2 units) or in parallel (3 units), check the datasheet for more information about connection possibilities.
The SPS5081X has a bright 2.4 inch OLED screen and a user-friendly interface. It also provides high resolution voltage and current settings, adjustable slew rates, on-device and through USB/LAN list sequence programming, analog control, and over-voltage, current, power and temperature protection. These features make the SPS5081X an ideal choice for demanding users.
Models
The models differ in the amount of channels, maximum voltage, current and output power.
| Model | SPS5041X | SPS5042X | SPS5043X | SPS5044X | SPS5045X |
| Channels | 1 | 1 | 1 | 2 | 3 |
| Voltage | 40 V | 40 V | 40 V | 40 V | 40 V |
| Current | 30 A | 60 A | 90 A | 30 A | 30 A |
| Output power | 360 W | 720 W | 1080 W | 360*2 W | 360*3 W |
| Price |
1048.75
€839.00
Excl. VAT
|
1286.25
€1,029.00
Excl. VAT
|
1673.75
€1,339.00
Excl. VAT
|
1973.75
€1,579.00
Excl. VAT
|
2348.75
€1,879.00
Excl. VAT
|
| Model | SPS5051X | SPS5081X | SPS5082X | SPS5083X | SPS5084X | SPS5085X |
| Channels | 1 | 1 | 1 | 1 | 2 | 3 |
| Voltage | 50 V | 80 V | 80 V | 80 V | 80 V | 80 V |
| Current | 10 A | 15 A | 30 A | 45 A | 15 A | 15 A |
| Output power | 180 W | 360 W | 720 W | 1080 W | 360*2 W | 360*3 W |
| Price |
961.25
€769.00
Excl. VAT
|
1248.75
€999.00
Excl. VAT
|
1548.75
€1,239.00
Excl. VAT
|
2023.75
€1,619.00
Excl. VAT
|
2173.75
€1,739.00
Excl. VAT
|
2611.25
€2,089.00
Excl. VAT
|
| Model | SPS5161X | SPS5162X | SPS5163X | SPS5164X | SPS5165X |
| Channels | 1 | 1 | 1 | 2 | 3 |
| Voltage | 160 V | 160 V | 160 V | 160 V | 160 V |
| Current | 7.5 A | 15 A | 22.5 A | 7.5 A | 30 A |
| Output power | 360 W | 720 W | 1080 W | 360*2 W | 360*3 W |
| Price |
1248.75
€999.00
Excl. VAT
|
1548.75
€1,239.00
Excl. VAT
|
2023.75
€1,619.00
Excl. VAT
|
2173.75
€1,739.00
Excl. VAT
|
2611.25
€2,089.00
Excl. VAT
|
Specifications
| Maximum power |
360 W |
| Maximum voltage |
80 V |
| Maximum current |
15 A |
| Resolution |
1 mV / 1 mA |
| Channels |
1 |
| Ripple |
7 mV RMS / 18 mA RMS |
| Protection functions |
OVP, OCP, OTP, Low AC Input Protection, LPP |
| Connectivity |
USB, LAN |
| Connector type |
Screw |
| Dimensions |
71 x 124 x 418 mm |
| Weight |
3.3 kg |
Accessories
The Siglent SPS5081X comes delivered with:
- USB cable
- Power cord
- Output test cord (10A)
- Output guard
Pros and cons
- Suitable for industrial applications
- Versatile use
Downloads
(2.1 MB)
