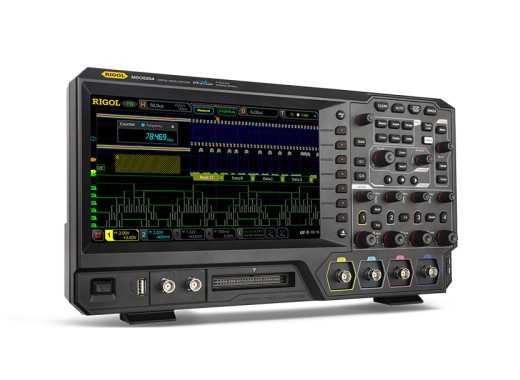

Rigol MSO5072 oscilloscope
Details
The Rigol MSO5072 is a 2-channel oscilloscope and the 70MHz version in the Rigol MSO5000 series. These oscilloscopes have a sample rate of up to 8 GS/s. The MSO5000 series oscilloscopes are so-called "Mixed Signal Oscilloscopes" this means that in addition to the analog channels they also support digital channels. With the PLA2216 (Logic analyzer option) it is possible to extend these oscilloscopes with 16 digital channels with a sample rate up to 1 GSa/s. Furthermore it is also possible to extend the oscilloscopes with a serial protocol analysis bundle option. This option adds bus trigger and analysis capabilities for RS232, l2C and CAN decoding to the oscilloscopes. It also includes a dual-channel 25 MHz waveform generator and a built-in power analysis option. More information about these options can be found under the heading 'Options' at the bottom of this page.
The oscilloscopes in this series feature a large 9" capacitive multi-touch screen for easy operation. With a sample rate up to 8 GSa/s it is possible to visualize very detailed signals with these oscilloscopes. Furthermore, the large memory depth makes it possible to capture long continuous signals. With a waveform capture rate up to 500,000 wfm/s, signals can be analyzed quickly and problems can be found quickly. These oscilloscopes also have 41 built-in waveform parameters, which makes it easy to perform automatic measurements. Measurement results can be transferred to a PC, tablet or screen with HDMI input using the available interfaces.
Optionally, a 16-channel digital logic probe and serial protocol analysis are available. These options are explained in more detail at the bottom of the page.
Model overview
| Model | Bandwidth | Channels | Sample rate | Price |
| MSO5072 | 70 MHz | 2 analog 16 digital (optional) | 8 GSA/S (1CH active) 2 GSa/s(2CH active) | |
| MSO5074 | 70 MHz | 4 analog 16 digital (optional) | 8 GSA/S (1CH active) 4 GSa/s (2CH active) 2 GSa/s (4CH active) | |
| MSO5102 | 100 MHz | 2 analog 16 digital (optional) | 8 GSA/S (1CH active) 2 GSa/s(2CH active) | |
| MSO5104 | 100 MHz | 4 analog 16 digital (optional) | 8 GSA/S (1CH active) 4 GSa/s (2CH active) 2 GSa/s (4CH active) | |
| MSO5204 | 200 MHz | 4 analog 16 digital (optional) | 8 GSA/S (1CH active) 4 GSa/s (2CH active) 2 GSa/s (4CH active) | |
| MSO5354 | 350 MHz | 4 analog 16 digital (optional) | 8 GSA/S (1CH active) 4 GSa/s (2CH active) 2 GSa/s (4CH active) |
Specifications
| Memory (Analog) | 100 Mpts (1 channel), 50 Mpts (half of channels), 25 Mpts (all channels) |
| Memory (Digital) | 25 Mpts |
| Rise time | ≤ 5 ns |
| Max. Waveform capture rate | 500,000 wfms/s |
| Display | 9" capacitive touch-screen, 1024x600 pixels |
| Input impedance (Analog) | 1 MΩ (Analog) 101 kΩ (Digital) |
| Horizontal scale (input) |
5 ns/div - 1000 s/div |
| Vertical sensitivity (input) |
1 mV/div - 10 V/div |
| A/D converter | 8 bits resolution |
| Maximum voltage | CAT I 300 Vrms, transient overvoltage 1600 Vpk |
| Probe support | 0.01x - 50000x |
| Connections | USB 2.0 host/device, LAn, GPIB (opt.), Web remote control, Aux out, HDMI out, Probe compensation out |
| Eleshop noise reduction rating | ★ ★ ★ |
| Dimensions | 367x200x130 mm |
| Weight (without box) | 3.5 Kg |
Options
| 16 digital channel logic probe (hardware) | PLA2216 | |
| Serial protocol analysis bundle (software) | MSO5000-BND | |
| 200Mpts memory depth (software) | MSO5000-2RL | |
| 4 channel upgrade (software) | MSO5000-4CH | |
| 70MHz to 100MHz bandwidth upgrade (software) | MSO5000-BW0T1 | |
| 70MHz to 200MHz bandwidth upgrade (software) | MSO5000-BW0T2 | |
| 70MHz to 350MHz bandwidth upgrade (software) | MSO5000-BW0T3 | |
| 100MHz to 200MHz bandwidth upgrade (software) | MSO5000-BW1T2 | |
| 100MHz to 350MHz bandwidth upgrade (software) | MSO5000-BW1T3 | |
| 200MHz to 350MHz bandwidth upgrade (software) | MSO5000-BW2T3 | |
| Flexray trigger and analysis (software) | MSO5000-FLEX | |
| RS232/UART trigger and analysis (software) | MSO5000-COMP | |
| IIC/SPI trigger and analysis (software) | MSO5000-EMBD | |
| CAN/LIN trigger and analysis (software) | MSO5000-AUTO | |
| I2S trigger and analysis (software) | MSO5000-AUDIO | |
| MIL-STD-1553 trigger and analysis (software) | MSO5000-AERO | |
| Arbitrary waveform generator (software) | MSO5000-AWG | |
| Power analysis (software) | MSO5000-PWR |
Accessories
This oscilloscope will be delivered including:
- Power cord
- USB cable
- 2/4 passive probes (equal to number of channels)
- 3 year warranty
Downloads
| MSO5000 datasheet |  (3.38 MB) | Download |
| MSO5000 user manual | (17.17 MB) | Download |
