The DS2302A now comes with the DS2000A bundle! See below the page for more information.

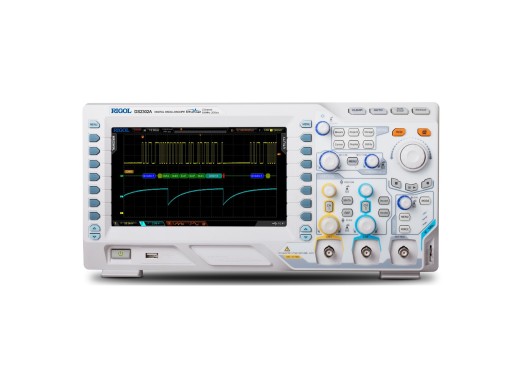

The DS2302A is a fast and versatile scope covering frequencies up to 300 MHz with two channels and a wide vertical range (500uV/div-10V/div) to deliver an extremely low noise floor to help you capture smaller signals. Add a 2 GSa/s max. sample rate and 14 Mpts. of standard memory depth to its user-friendly interface and 8 inch WVGA display and you've got a scope that outperforms the competition in a wide range of bench-top and field applications.
DS2102A | DS2202A | DS2302A | |
---|---|---|---|
Bandwidth | 100 MHz | 200 MHz | 300 MHz |
Price |
Sample rate | 1 channel: 2GS/s 2 channels: 1GS/s each |
Memory | 14 MB/ 14Mpts total |
Display | 8" TFT, 800x480 pixels 160,000 colors |
Input impedance | 1 MΩ |
# Channels | 2 |
Horizontal scale | 5 ns/div -1000 s/div |
Vertical scale | 0.5 mV/div - 10 V/div |
A/D converter | 8 bits resolutie |
Maximum voltage | CAT I 300 Vrms, CAT II 100 Vrms, transient overvoltage 1000 Vpk |
Probe support | 0.1x - 1000x |
Connections | USB 2.0 type A, USB 2.0 type B, LAN, pass/fail trigger |
Weight | 3.9 Kg |
The following accessories are supplied with the scope:
All options are included by default when you purchase your DS/MSO2000A oscilloscope!
Advanced Trigger Option | With this software you activate all trigger options. (Windows Trigger, Nth Edge Trigger, Delay Trigger, TimeOut Trigger, Duration Trigger, USB Trigger) |
Memory expansion option | With this software option you can quadruple the memory depth of your Rigol DS/MSO2000A series oscilloscope to 56 megapoints. This memory is already built in, but is not activated by default. |
Serial Decoding Option | With this software option you can decode RS232, I²C and SPI with your Rigol DS/MSO2000A series oscilloscope. |
CAN Serial Decoding Option | With this software option you can decode CAN with your Rigol DS/MSO2000A series oscilloscope. |
