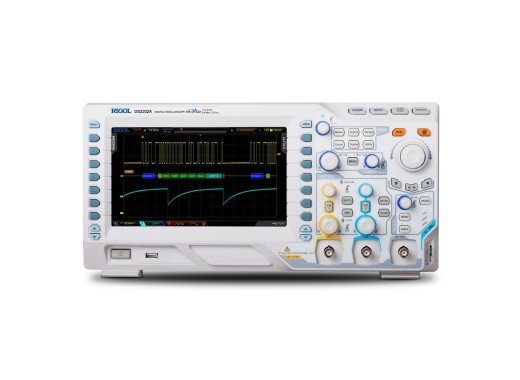

Rigol DS2202A oscilloscope

599 €599.00 Excl. VAT

This product is retired

Product number: ELE001403

Lowest price guaranteed

Details

The DS2202A is now delivered including the DS2000A bundle! See below for more information.

The DS2202A is a fast and versatile scope covering frequencies up to 200 MHz with two channels and a wide vertical range (500uV/div-10V/div) to deliver an extremely low noise floor to help you capture smaller signals. Add a 2 GSa/s max. sample rate and 14 Mpts. of standard memory depth to its user-friendly interface and 8 inch WVGA display and you've got a scope that outperforms the competition in a wide range of bench-top and field applications.

Models

	DS2102A	DS2202A	DS2302A
Bandwidth	100 MHz	200 MHz	300 MHz
Price	569 €569.00 Excl. VAT	599 €599.00 Excl. VAT	719 €719.00 Excl. VAT

Specifications

Sample rate	1 channel: 2GS/s 2 channels: 1GS/s each
Memory	14 MB/ 14Mpts total
Display	8" TFT, 800x480 pixels 160,000 colors
Input impedance	1 MΩ
# Channels	2
Horizontal scale	5 ns/div -1000 s/div
Vertical scale	0.5 mV/div - 10 V/div
A/D converter	8 bits resolutie
Maximum voltage	CAT I 300 Vrms, CAT II 100 Vrms, transient overvoltage 1000 Vpk
Probe support	0.1x - 1000x
Connections	USB 2.0 type A, USB 2.0 type B, LAN, pass/fail trigger
Weight	3.9 Kg

Accessoires

The following accessories are supplied with the scope:

2 passive probes (350 MHz , type PVP2350)
USB data cable
230V plug

Options

All options are included by default when you purchase your DS/MSO2000A oscilloscope!

Advanced Trigger Option	With this software you activate all trigger options. (Windows Trigger, Nth Edge Trigger, Delay Trigger, TimeOut Trigger, Duration Trigger, USB Trigger)
Memory expansion option	With this software option you can quadruple the memory depth of your Rigol DS/MSO2000A series oscilloscope to 56 megapoints. This memory is already built in, but is not activated by default.
Serial Decoding Option	With this software option you can decode RS232, I²C and SPI with your Rigol DS/MSO2000A series oscilloscope.
CAN Serial Decoding Option	With this software option you can decode CAN with your Rigol DS/MSO2000A series oscilloscope.
