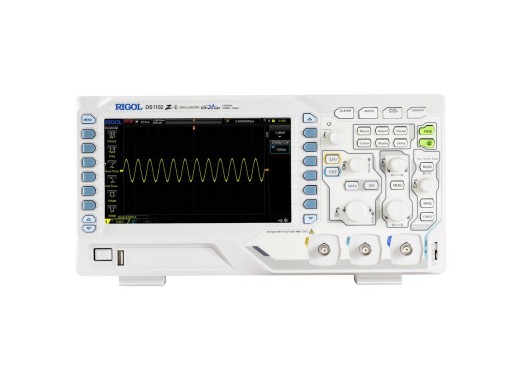

Rigol DS1102Z-E oscilloscope
Promotion! This product is temporarily reduced in price until July 31st 2026!
Details
The Rigol DS1102Z-E is an entry-level 2-channel oscilloscope with 100 MHz bandwidth. This series offers high performance for a very competitive price! This oscilloscope can be used for a wide range of applications thanks to a sample rate of 1 GSa/s. The DS1102Z-E features the so-called 'Innovative Ultravision Technology'. This technology ensures that the scope has a very large memory depth of 24 Mpts and a waveform capture rate of 30000 waveforms per second. In addition, this technology makes it possible to record and play back real-time waveforms of up to 60000 frames. Furthermore, this oscilloscope also has an 'intensity graded colour display' which means that the signal is displayed more clearly in the places where it is most present. With the interfaces this oscilloscope can also be connected to, for example, a PC to transfer measurement results. It is also possible to store measurement results on a USB stick. Furthermore, the compact design and low weight of this scope make it easy to use on almost every workstation.
Specifications
| Bandwidth | 100 MHz |
| Channels | 2 |
| Max. real-time Sample Rate | 1 GSa/s (1 channel), 500 MSa/s (2 channels) |
| Max. memory depth | 24 Mpts (1 channel), 12 Mpts (2 channels) |
| Max. waveform capture rate | 30000 wfms/s |
| Vertical resolution | 8 bits |
| Display | 7" TFT LCD (800x480 Px) |
| Decode/trigger buses | 2 (Parallel, RS232/UART, I2C, SPI) |
| Horizontal scale | 2 ns/div - 50 s/div |
| Vertical Sensitivity | 0.5 mV/div - 10 V/div |
| Max. voltage | CAT I 300 Vrms, CAT II 100 Vrms |
| Rise time | 3.5 ns |
| Interfaces | USB Host/Device, LAN, Aux output |
| Weight | 3.5 kg |
| Dimensions | 313.1 x 160.8 x 122.4 mm |
Accessories
The Rigol DS1102Z-E oscilloscope is supplied including:
- Power cord
- USB cable
- 2 passive probes (150 MHz)
Pros and cons
- Competitive pricing
- Memory depth
- Only one vertical scale section for both channels
Downloads
| DS1000Z-E user guide |  (8.54 MB) | Download |
| Rigol DS1102Z-E datasheet | (1.88 MB) | Download |
