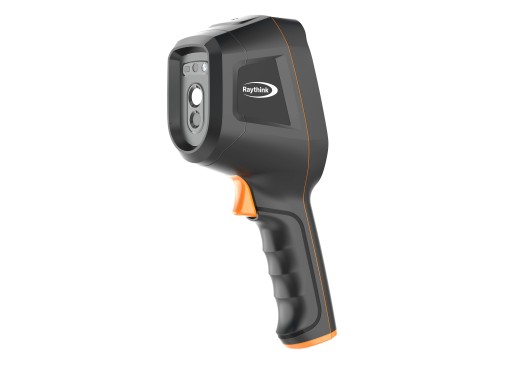

Raythink CX20-Ultra thermal camera
Details
The Raythink CX20 Ultra is a handheld thermal camera for circuit maintenance, HVAC leak detection and equipment inspection. The camera measures from -20 to 550°C with automatic range switching. It uses a 256 x 192 infrared detector with real-time AI super-resolution to enhance images up to 512 x 384, helping users inspect faults more clearly on site.
The Ultra model adds a visible-light camera, additional image modes, and a laser pointer and rangefinder for more focused inspection work. With a sensitivity of <40mK, 25Hz frame rate and a 3.5-inch display, the device is suitable for quickly identifying hot spots and abnormal temperature patterns in detail. Finally, Wi-Fi, UVC transmission, and PC/mobile analysis software support image sharing and further inspection after measurement.
Model overview
| CX20 | CX20 Pro | CX20 Ultra | |
|---|---|---|---|
| Focal length | 3.2 mm | 3.2 mm | 4.3 mm |
| FOV | 56° x 42° | 56° x 42° | 40° x 30° |
| Focal distance | 0.3 m | 0.3 m | 0.7 m |
| Image modes | Infrared | Infrared, fusion, PIP, visible light | Infrared, fusion, PIP, visible light |
| Laser pointer | No |
Yes |
Yes |
| Laser rangefinder | No |
No |
Yes max. detection range 4 m |
| Price |
Specifications
| Temperature range | -20 - 550 °C |
| Accuracy | ±2 °C or ±2% (whichever is greater) |
| IR resolution | 256 x 192 (49152 pixels) |
| NETD | <40 mK |
| Frame rate | 25 Hz |
| Display | 3.5" (480 x 640 pixels) |
| Colour palettes | 7 |
| Storage | 32 GB internal memory |
| Battery | Up to 6 hours |
| Dimensions | 246 x 101 x 85 mm |
| Weight | 500 g |
Accessories
- USB cable
- Certificate of qualification
- Calibration certificate
- Portable bag
- Charger
Pros and cons
- AI-powered super resolution to 512x384
- Low NETD
- Laser pointer and rangefinder
- Visible light image mode
Downloads
| Raythink CX20 series datasheet |  (17.19 MB) | Download |
