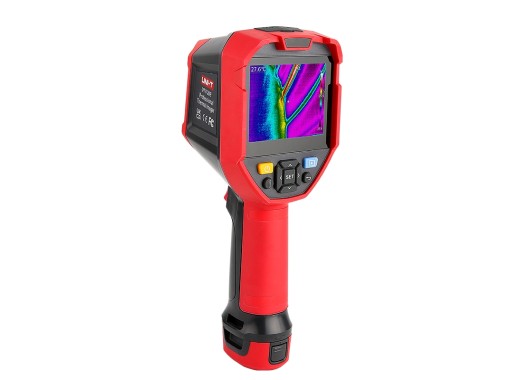

UNI-T UTi720E thermal imaging camera
Details
The UTi720E is an advanced thermal imaging camera with Wi-Fi capability, a IR resolution of 256 x 192 pixels and a temperature range of -20 °C - 550 °C. Moreover, it features a large 3.5" IPS display screen with a resolution of 640 x 480 pixels and a 5200mAh detachable battery pack which has an operating time of at least 3 hours. The detachable battery pack is very convenient for easy and quick battery change, allowing continously work for long periods of time.
Furthermore, the camera offers important features such as: auto alarm for high/low temperature, autro tracking for hot/cold spot, Wi-Fi connection through Mobile APP, digital zoom: 2x/4x, LED flashlight and PC software. Also, the camera can be considered to be very sturdy as it has an IP54 rating and has been drop-tested up to 2m.
Applications of the UTi720E include: electric power tower inspection, pipeline inspection, solar panel inspection and HVAC inspection.
To inspect electronics with the UNI-T UTi720E, there is also a Macro lens sold separately.
Specifications
| Temperature range | -20 °C - 550 °C |
| Accuracy | ±2 °C or ±2% (whichever is greater) |
| IR resolution | 256 x 192 (49152 pixels) |
| NETD | 50 mK |
| Focal distance | 3.2 mm |
| Frame rate | 25 Hz |
| FOV | 56°x42° |
| Emissivity | 0.95（default） 0.01~1.00 |
| Display | 3.5" IPS (640 × 480 pixels) |
| Colour palettes | White hot, black hot, red hot, ironbow, rainbow HC, rainbow, lava |
| Storage | Max 32GB Micro SD card |
| Battery | At least 3 hours (without Wi-Fi) |
| Dimensions | 260 x 97 x 99 mm |
| Weight | 654 g |
Accessories
The UNI-T UTi720E thermal imaging camera includes:
- USB-C cable
- Li-ion battery pack
Pros and cons
- Detachable battery pack
- Can be mounted on a tripod
Downloads
| UTi730E/720E user manual |  (2.23 MB) | Download |
