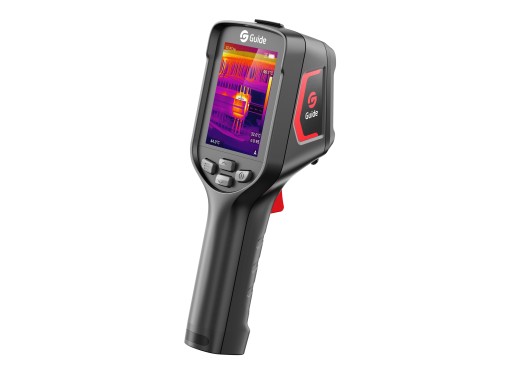

Guide IR E4S thermal imaging camera
Details
The Guide IR E4S is a capable thermal camera. The look and feel of the camera is similar to other cameras in the Guide E-series, with improved specifications such as the IR resolution. It also has the new ApexVision S1 system. This new system consists of a new IR detector, image processing platform and algorithm. Resulting in a new thermal sensitivity of 15mK. The thermal camera has several practical features, such as the capability to record video, Wi-Fi, and real-time control via an app, and firmware updates via Wi-Fi. The performance and quality of this thermal camera can easily be compared with well-known brands like Flir.
The E4S has a high IR resolution of 384x288 with a total of 110592 pixels, which is more than double that of other thermal cameras in the E-series, making this camera a significant upgrade. Using both the IR resolution of 384x288 combined with the information obtained from its visible light camera, this thermal camera can deliver crisp, clear thermal images and videos on a large 3.5-inch display. Besides the sensor, this camera offers other important features: auto hot & cold spot tracking, real-time AI-driven image optimisation, enhancing noise reduction, real-time super-resolution (768x576), alarm function, flashlight, and a laser. Furthermore, it has 32GB of built-in memory.
It can be mounted on a tripod because it features a 1/4 inch mount connector on the bottom of the handle. It is possible to view the IR video live over Wi-Fi with the Thermography app.
For tutorials on the Thermotools software, the Guide YouTube account, seen here, contains many videos on how to use the software.
Model overview
| Model | E2S | E2+S | E3S | E4S |
|---|---|---|---|---|
| Temperature range | -20 – 550 °C | -20 – 550 °C | -20 – 550 °C | -20 – 650 °C |
| IR resolution | 256 x 192 (49152 pixels) | 256 x 192 (49152 pixels) | 256 x 192 (49152 pixels) | 384 x 288 (110592 pixels) |
| FOV | 56° x 42° | 25° x 19° | 56° x 42° | 38° x 28° |
| Auto focus | No | Yes | No | No |
| Price |
Specifications
| Accuracy | ±2 °C or ±2% (whichever is greater) |
| NETD | 15 mK |
| Min. focal distance | 30 cm |
| Focal length | 7 mm |
| Frame rate | 30 Hz |
| Spot measurement | Centre, 3 areas (max/min), auto spot tracking, alarm |
| Detector type | VOx, 7.5 to 14 μm |
| Display | 3.5" |
| Battery | Up to 10 hours |
| Dimensions | 227 × 81 × 77.5 mm |
| Weight | 460 g |
Optionally, you can purchase the which makes it possible to focus on small parts, like electronic boards.
Accessories
The E4S includes
- Charger
- USB-A to USB-C cable
- Wrist strap
- Carrying bag
Pros and cons
- High resolution for close up measurements
- Thermal sensitivity of 15mK
- Wide temperature range up to 650°C
- Not compatible with Mac devices
Downloads
