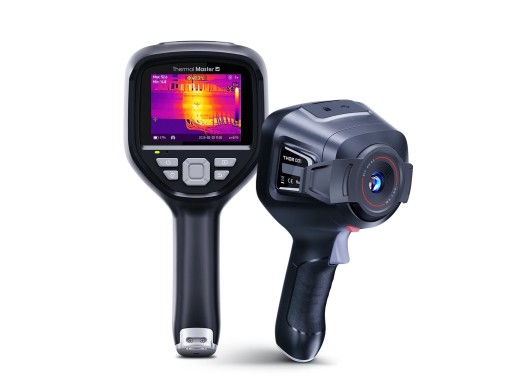

Thermal Master THOR001 thermal imaging camera
Promotion! Apply this discount code in the shopping cart to get 10% discount: TM10
Details
The Thermal Master THOR001 thermal imaging camera is part of the competitively priced THOR series. Compared to other thermal cameras in this price range, the THOR001 has a lower thermal sensitivity of ≤35mK. The THOR001 is the most advanced model in this series, featuring a macro lens, a high accuracy of ±1.5°C or ±1.5% and a minimal focus distance of 8cm.
With the built-in super-resolution, this camera can scale up the resolution of the thermal image from 256x192 to 512x384 pixels. Together with the visible light camera, this ensures clear thermal images which can be displayed in detail and analysed on the large 3.5-inch LCD screen with a resolution of 640x480 pixels. Moreover, this camera offers more features such as an IP54 rating, auto hot & cold spot tracking, an alarm function, a flashlight, and a laser. Finally, the camera has built-in 8GB of memory, which can be expanded to 32GB with an SD card.
Model overview
| Model | THOR001 | THOR002 |
|---|---|---|
| Built-in macro lens |
Yes
|
No
|
| Accuracy | ±1.5 ℃ or ± 1.5 % | ± 2 ℃ or ± 2 % |
| Min. focus distance | 8 cm | 30 cm |
| NETD | ≤35 mK | ≤40 mK |
| Spot measurement | Center spot / Max / Min / 6 Custom Spots / Temperature difference | Center spot / Max / Min / 3 Custom Spots / Temperature difference |
| Colour palettes | White hot, Black hot, Lava, Iron, Rainbow, Rainbow HC, Black red, High-temperature highlight, Low temperature highlight | White hot, Black hot, Lava, Iron, Rainbow, Rainbow HC, Black red |
| Price |
Specifications
| Temperature range | -20 to 550 °C |
| Focal length | 4.3 mm |
| IR resolution | 256 × 192 512 × 384 (super-resolution) |
| Frame rate | 25 Hz |
| FOV | 40° × 30° |
| Response time | 40 ms |
| Emissivity | 0.01 ~ 0.99 adjustable |
| Display | 3.5" (640 × 480 pixels) |
| Storage | 8 GB internal, 32 GB SD card |
| Battery | Up to 6 hours |
| Charge time | 4 hours |
| Dimensions | 263 × 115 × 139 mm |
| Net weight | 0.375 kg |
Accessories
The THOR001 includes
- SD card
- USB-A to USB-C cable
- Macro lens
Pros and cons
- 3.5" display
- Good thermal sensitivity
- Built-in macro lens
- 6 hours operating time
- Bulky design
Downloads
| THOR series manual |  (2.16 MB) | Download |
| THOR series datasheet | (1.88 MB) | Download |
