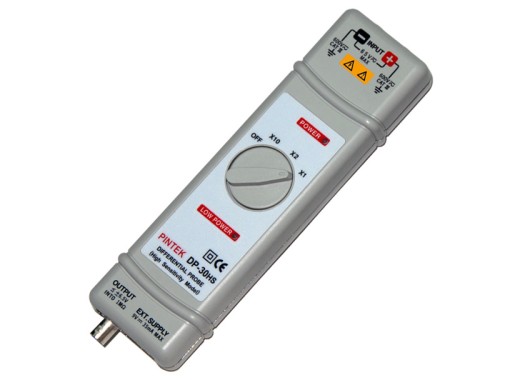

Pintek DP-30HS differential probe
Details
The DP-30HS is a differential probe made to connect to an oscilloscope. This probe is suitable for use with any oscilloscope. The DP-30HS has a sensitivity of 1mV and offers a range of 65 Vp-p / 30MHz. This input can attenuate the probe with up to 10x attenuation. With only 2% deviation, the probe is very precise.
Specifications
| Measuring range voltage | 0 - 23 V DC 0 - 65 Vp-p AC |
| Measuring range frequency | 0 - 15 MHz (2x/10x attenuation)0 - 15 MHz (1x attenuation) |
| Measurement deviation | ±2% |
| Attenuation | 1x, 2x, 10x |
| Input impedance | 2 MΩ / 1.7 pF |
| Output impedance | 50 Ω |
| Safety Category Level | CAT II |
| Dimensions | 195 x 55 x 30 mm |
| Weight | 250 g |
Supplies
- Carrying case
- Cable set with clamps
- BNC cable
- User manual
- Adaptor
For more information, the guide can be found here.
