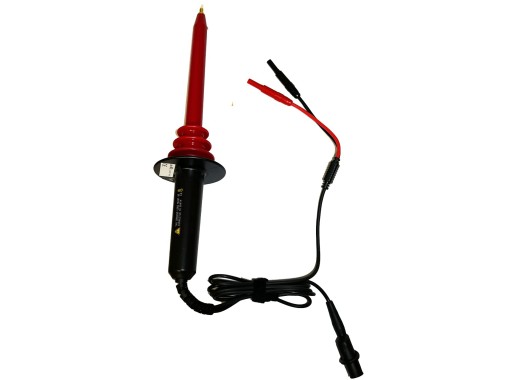

Pintek HVP-40 probe
Details
The Pintek HVP-40 is a high voltage probe, suitable for measuring voltages up to 40kV DC or 28kV AC at 50/60Hz. With an input impedance of 1000 MΩ, the current flowing through the probe is only 40µA. The probe is designed to allow the user to measure high voltages as safely as possible. The probe is tested for CE, TUV GS, UL, CUL and IEC1010 and is approved.
With the connectors that the HVP-40 has, it can be connected to almost all multimeters. The HVP-40 can be used for a wide range of applications.
Specifications
| Measuring range | 0 - 40 kV |
| Measurement deviation | ±1% (up to 20kV) ±2% (up to 40kV) |
| Attenuation | 1000x |
| Measuring cable length | 100 cm |
| Safety Category Level | CAT II |
| Dimensions | 340 x 80 mm (length x diameter) |
| Weight | 300 g |
Accessories
- 1x Sprung hook tip
- 1x Hex jam nut
- 1x Ground spring
For more information, the manual can be found here.
