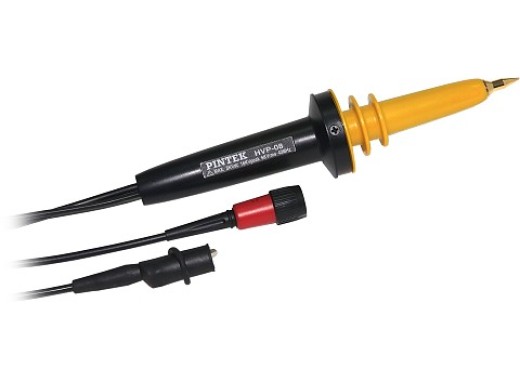

Pintek HVP-08 probe
Details
The HVP-08 is a high voltage probe, suitable for measuring voltages up to 8kV DC or 16kV AC. With an input impedance of 100MΩ there will be no large currents flowing through the probe. The probe is designed to allow the user to measure high voltages as safely as possible. The probe is tested for CE, TUV GS, UL, CUL and IEC1010 and is approved.
With the connectors that the HPV-08 has, it can be connected to almost all scopes. This way, it can be used in a wide range of applications. Via a BNC to banana connector, the probe can also be used with a multimeter.
Specifications
| Measuring range | 0 - 8 kV (DC) 0-16 kV (AC peak-peak) |
| Bandwidth | 40 MHz |
| Measurement deviation | ±2% (up to 5kV) ±3% (up to 8kV) |
| Attenuation | 1000x |
| Safety Category Level | CAT II |
| Dimensions | 215 x 47 mm (length x diameter) |
| Weight | 180 g |
For more information, the manual can be found here.
