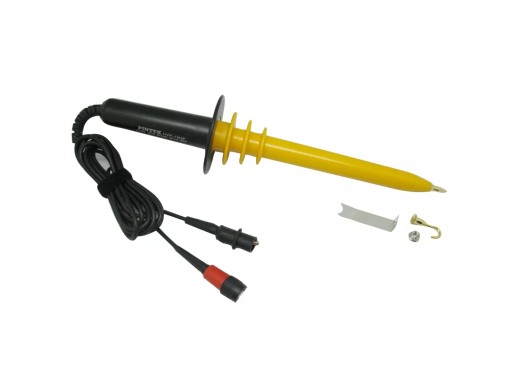

Pintek HVP-15HF probe
Details
The HVP-15HF is a high voltage probe, suitable for measuring voltages up to 10kV DC or 20kV AC. With an input impedance of 100MΩ there will be no large currents flowing through the probe. The probe is designed to allow the user to measure high voltages as safely as possible. The probe is CE, GS, UL and CUL tested and approved.
With the connectors that the HPV-15HF has, it can be connected to almost all scopes. This makes it widely applicable. Via a BNC to banana connector, the probe can also be used with a multimeter.
Specifications
| Measuring range voltage | 0 - 10 kV DC 0 - 20 kV p-p AC |
| Measuring range frequency | 0 - 50 MHz |
| Measurement deviation | ±2% (up to 10kV) ±3% (up to 30kV) |
| Attenuation | 1000x |
| Measuring cable length | 200 cm |
| Safety Category Level | CAT II |
| Dimensions | 340 x 75 mm (length x diameter) |
| Weight | 250 g |
