Owon XSA1036P-TG-LF spectrum analyser
Details

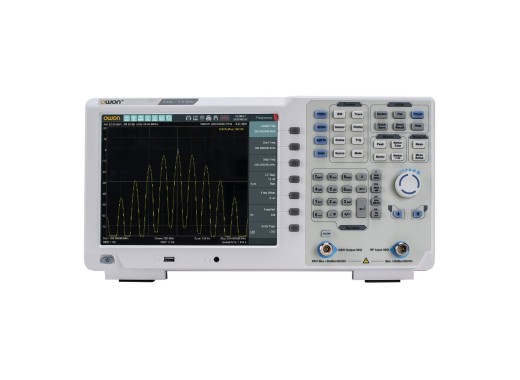

The Owon XSA1036P-TG-LF is a spectrum analyser with a bandwidth from 10Hz to 3.6GHz and a tracking generator, giving it an excellent price-to-performance ratio. This frequency range makes this spectrum analyser suitable for both high- and low-frequency applications. The tracking generator is capable of producing an output frequency from 100kHz to 3.6GHz. This spectrum analyser has a large 10.4-inch touchscreen LCD and is equipped with advanced measurement functions. The minimum noise experienced by this spectrum analyser is -140dBm/Hz and -160dBm/Hz when the built-in pre-amplifier is turned on. Furthermore, the power of this signal is adjustable from -30dBm to 0dBm. In addition, all spectrum analysers within the XSA1000P series feature a Pass/Fail function, an EMI pre-compliance test function and a waterfall plot function as standard.
Model overview
| Model | Bandwidth | Tracking generator | Price |
| XSA1015P-TG | 9 kHz - 1.5 GHz | 100 kHz - 1.5 GHz | |
| XSA1015P-TG-LF | 10 Hz - 1.5 GHz | 100 kHz - 1.5 GHz | |
| XSA1032P-TG | 9 kHz - 3.2 GHz | 100 kHz - 3.2 GHz | |
| XSA1036P-TG | 9 kHz - 3.6 GHz | 100 kHz - 3.6 GHz | |
| XSA1036P-TG-LF | 10 Hz - 3.6 GHz | 100 kHz - 3.6 GHz | |
| XSA1075P-TG | 9 kHz - 7.5 GHz | 100 kHz - 7.5 GHz | |
| XSA1075P-TG-LF | 10 Hz - 7.5 GHz | 100 kHz - 7.5 GHz |
Specifications
| RBW | 1 Hz - 1 MHz |
| Resolution | 1 Hz |
| Noise Level | ≤ -140 dBm/Hz, with pre-amplifier on ≤ -160 dBm/Hz |
| Phase noise (at 10 kHz offset) | < -106 dBc / Hz |
| Third-order intercept (IP3) | +13 dBm |
| Maximum input voltage | 50V DC |
| Maximum input power | 30 dBm average continuous power |
| Amplitude display | Log: 1 dB - 255 dB, 5 divisions Linear: 0 - 100 %, 5 divisions |
| Tracking generator | 100 kHz - 1.5 Ghz, -30 dBm - 0 dBm |
| Interfaces | USB host, USB device, LAN, earphone port, HDMI |
| Display | 10.4" LCD (1024x768) |
| Dimensions | 375 x 185 x 120 mm |
| Weight | 5 kg |
Accessories
The Owon XSA1036P-TG-LF comes with:
- Power cord
Pros and cons
- Supports low frequency
- Tracking generator only starts from 100kHz
