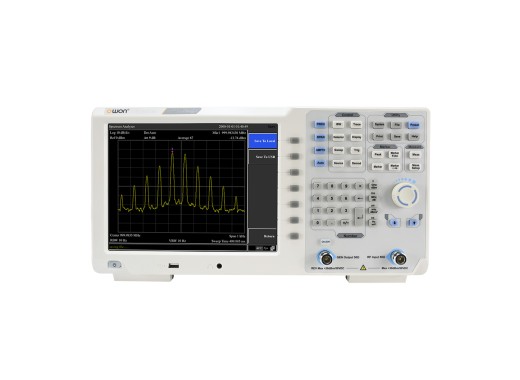

Owon XSA1015P-TG spectrum analyser

Eleshop
Test & measure
Spectrum analysers
All spectrum analysers
Owon XSA1015P-TG spectrum analyser

975.21 €975.21 Excl. VAT

Loading stock info

Product number: ELE006334

Lowest price guaranteed

Details

The XSA1015P-TG spectrum analyzer from Owon has an excellent price/quality ratio as it has a frequency range of up to 1.5 GHz and features a tracking generator. This spectrum analyzer has a large 10.4" LCD touchscreen display and is equipped with advanced measurement functions. The minimum noise experienced by this spectrum analyzer is -140 dBm/Hz and -160 dBm/Hz when the built-in pre-amplifier is turned on. The tracking generator is capable of producing an output frequency from 100 kHz to 1.5 Ghz. Furthermore, the power of this signal is adjustable from -30 dBm to 0 dBm. In addition, all spectrum analyzers within the XSA1000P series feature a Pass/Fail function, an EMI precompliance test function and a waterfall plot function as standard.

Model overview

Model	Bandwidth	Tracking generator	Price
XSA1015P-TG	9 kHz - 1.5 GHz	100 kHz - 1.5 GHz	975.21 €975.21 Excl. VAT
XSA1015P-TG-LF	10 Hz - 1.5 GHz	100 kHz - 1.5 GHz	1249 €1,249.00 Excl. VAT
XSA1032P-TG	9 kHz - 3.2 GHz	100 kHz - 3.2 GHz	1750 €1,750.00 Excl. VAT
XSA1036P-TG	9 kHz - 3.6 GHz	100 kHz - 3.6 GHz	1899 €1,899.00 Excl. VAT
XSA1036P-TG-LF	10 Hz - 3.6 GHz	100 kHz - 3.6 GHz	2149 €2,149.00 Excl. VAT
XSA1075P-TG	9 kHz - 7.5 GHz	100 kHz - 7.5 GHz	4545.46 €4,545.46 Excl. VAT
XSA1075P-TG-LF	10 Hz - 7.5 GHz	100 kHz - 7.5 GHz	4990 €4,990.00 Excl. VAT

Specifications

RBW	1 Hz - 1 MHz
Resolution	1 Hz
Noise Level	Up to -140 dBm/Hz, with pre-amplifier on up to -160 dBm/Hz
Phase noise (at 10 kHz offset)	< -106 dBc / Hz
Third-order intercept (IP3)	+13 dBm
Maximum input voltage	50V DC
Maximum input power	30 dBm average continuous power
Amplitude display	Log: 1 dB - 255 dB, 5 divisions Linear: 0 - 100 %, 5 divisions
Tracking generator	100 kHz - 1.5 Ghz, -30 dBm - 0 dBm
Interfaces	USB HOST, USB DEVICE, LAN, earphone port, HDMI
Display	10.4" LCD (1024x768)
Dimensions	375 x 185 x 120 mm
Weight	5 kg
