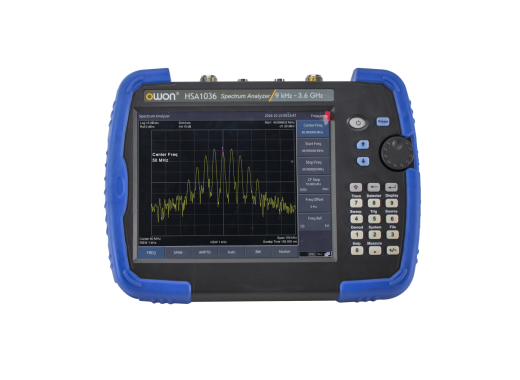

Owon HSA1036-TG spectrum analyser

The Owon HSA1036-TG spectrum analyser has a frequency range of 9 kHz up to 3.6 GHz and a frequency resolution of 1Hz which makes sure that very accurate measurements can be made. Furthermore, the spectrum analyser has an excellent small signal measurement capability due to the small DANL. The Owon HSA1036-tg has a large screen with full touch design and a wider view angle for more convenient operation. Additionally, the spectrum analyser has a build-in light sensor which adjusts the backlight according to the environmental light. Lastly, the pass/fail function rapidly detects if the test results pass. The Owon HSA1036-TG is a handheld spectrum analyser which makes it easy in use. Additionally, the spectrum analyser also has a EMI pre-compliance test function and Tracking Generator.

EMI funtion and tracking generator

The HSA1036-TG has a 3.6GHz tracking generator and provides EMI pre-compliance test function. The 6dB EMI filter and peak detector makes the spectrum analyser suitable for more accurate EMI-pre test and diagnosis. Complete testing and production report can be completed by using supporting software. Due the implementation of these functions, it is posibble to test whether or not devices fulfill the requirements of the EMI regulations.

Models

Model	HSA1016-TG	HSA1036-TG
Frequency range	9 kHz - 1.6 GHz	9 kHz - 3.6 GHz
Tracking generator	100 kHz - 1.6 GHZ	100 kHz - 3.6 GHz (tracking generator) 35 MHz - 3.6 GHz (signal generator)
Price	1299 €1,299.00 Excl. VAT	2499 €2,499.00 Excl. VAT

Specifications

Frequency resolution	1Hz
Communication port	USB host, USB device, LAN, AUX
RBW	10 Hz to 500 kHz
VBW	10 Hz - 3 MHz
Display	8 inch LCD (1024 x 768), Touchscreen
Weight	2.5 kg
Dimensions	265 x 190 x 58 mm

Accesoires

The Owon HSA1036-TG will be delivered including:

• Handheld spectrum analyser
• Metal case
• Power cord
• Adapter
• USB cable
