114.88 €114.88 Excl. VAT
Loading stock info
  •
Product number: ELE005620

Be the first to review this product

Details

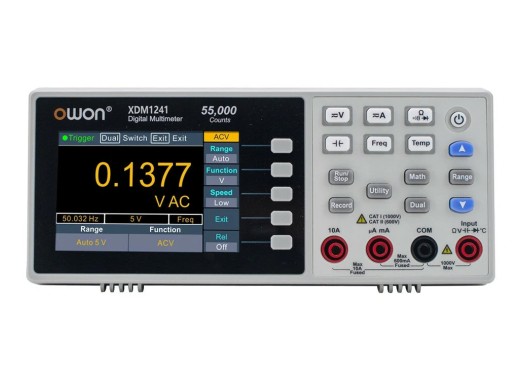

The Owon XDM1241 is a very low-cost, high-precision portable benchtop multimeter. It is powered by a lithium battery and can be recharged with USB-C or a 5V DC jack. The meter has a True RMS function to measure the AC voltage and current and it has a reading speed of up to 65 values per second.

The XDM1241 is able to store data internally in the memory of the meter and display it on the 3.5" high-resolution LCD display. Up to 1000 points can be stored and the time interval can be varied from 15ms to 9999s. By means of the USB port on the back of the device, the meter can be programmed and controlled via SCPI.

Specifications

Display resolution55000 counts
AC voltage1 mV - 750 V
DC voltage0.001 mV - 1000 V
AC current1 μA - 10 A
DC current0.01 μA - 10 A
Resistance0.01 Ω - 50 MΩ
Capacitance1 nF - 50 mF
Frequency0.001 Hz - 60 MHz
Other functionsDiode, Continuity, Min/Max record, Peak/Data hold, auto range
Power supplyLithium battery
True-RMS
Yes
Data logging
Yes
Display55.000 count, 3.5" TFT-LCD
ConnectivityRS232, USB
Dimensions200 x 86.5 x 64 mm
Weight450 g

Accessories

Owon's XDM1041 is supplied with:

  • Measuring cable + alligator clips
  • USB to DC cable

Pros and cons

  • 55000 counts
  • SCPI programmable
  • Battery Powered
  • Software (DMMEasyControl) is limited
  • DMMEasyControl can be difficult to get working
