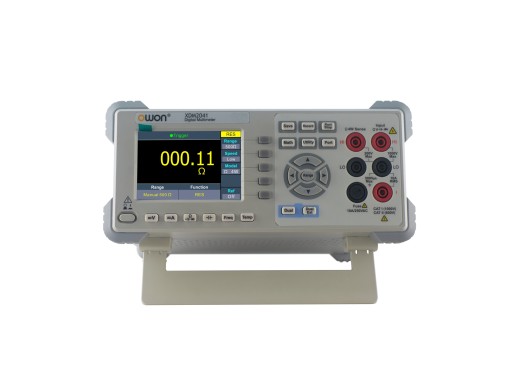

Owon XDM2041 multimeter
Details
The Owon XDM2041 is an extremely low-cost, high-precision benchtop multimeter. The meter has a True RMS function to measure the AC voltage and current and it has a reading speed of up to 65 values per second. Also, the XDM2041 is equipped with functions such as measuring 2-wire and 4-wire resistances.
The XDM2041 is able to store data internally in the memory of the meter and display it on the 3.7" high-resolution LCD display. Up to 1000 points can be stored and the time interval can be varied from 15ms to 9999s. By means of the RS232 port on the back of the device, the meter can be programmed and controlled via SCPI.
Specifications
| Measuring Properties | ||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||
| Other functionality | Max, Min, Average, REL_%, dBm/dB, Pass/Fail, Table | |||||||||||||||||||||||||||||
| Data logger function | Duration: 5 ms - 9999s Length: 1 kPts | |||||||||||||||||||||||||||||
| Digits | 4 ⅘ digits | |||||||||||||||||||||||||||||
| Display | 3.7" LCD | |||||||||||||||||||||||||||||
| Connectivity | RS232 | |||||||||||||||||||||||||||||
| Eleshop noise rating | ★ ★ ★ ★ ★ | |||||||||||||||||||||||||||||
| Dimensions | 235 x 110 x 295 mm | |||||||||||||||||||||||||||||
| Weight | 3.06 kg | |||||||||||||||||||||||||||||
Accessories
Owon's XDM2041 is supplied with:
- Measuring cable + alligator clips
- Power cord
- Fuse
Pros and cons
- True RMS
- 50000 counts
- Attractively priced
- Fanless
- No option for USB connection
Downloads
| XDM2041 user manual |
 (1.48 MB) |
Download |
| Owon XDM2041 brochure + datasheet |
(850.17 KB) |
Download |
| DMMEasyControl Software Guide |
(1.53 MB) |
Download |
| SCPI programming manual |
(1.06 MB) |
Download |
