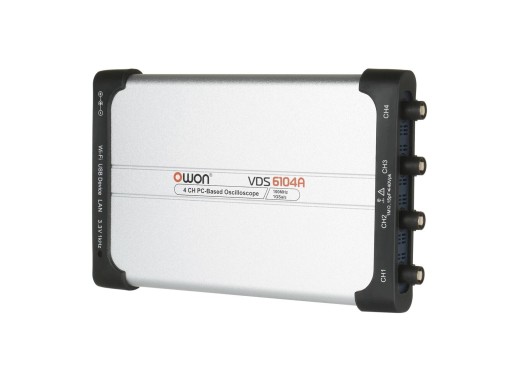

Owon VDS6104A oscilloscope
Details
The Owon VDS6104A is the 4-channel 100MHz USB oscilloscope in Owon's VDS6000 series. The VDS series PC oscilloscopes can be connected with a computer by USB or over Ethernet.
When the scope is connected to a PC by USB and the PC supplies at least 1.5A, the power is drawn from USB and use of the power adapter is not necessary.
Owon supplies PC software to control the oscilloscope and view waveforms. But besides the Owon software, it can also be used with Labview and it can be controlled using the SCPI protocol.
Model overview
| Model | VDS6102A | VDS6104A |
|---|---|---|
| Channels | 2 | 4 |
| Function generator | Yes |
No |
| Price |
Specifications
| Bandwidth | 100 MHz |
| Memory depth | 10 Mpts |
| Sample rate | 1 GS/s |
| Vertical resolution | 14 bits |
| Vertical scale | 2 mV / div ～ 5 V / div |
| Horizontal scale | 1 ns / div ～ 100 s / div |
| Interfaces | USB device/host (type-c), LAN |
| Dimensions | 190 x 120 x 18 mm |
| Weight | 450 g |
Accessories
The Owon VDS6104A comes with:
- USB Type-C cable
- AC-DC adapter
- BNC cable
- Probes
- Power cord
Downloads
| VDS6000 user manual |  (2.51 MB) | Download |
