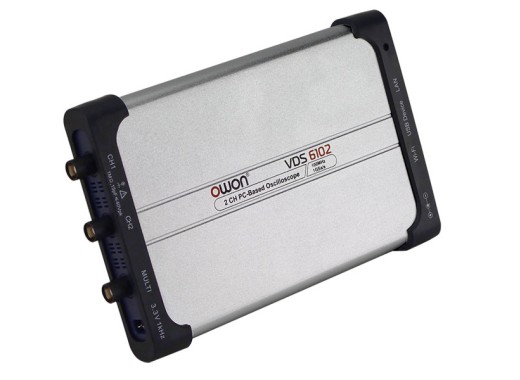

Owon VDS6102A USB oscilloscope
Details
The Owon VDS6102A is the 2-channel 100MHz USB oscilloscope in Owon's VDS6000 series. The VDS series PC oscilloscopes can be connected with a computer by USB or over Ethernet.
When the scope is connected to a PC by USB and the PC supplies at least 1.5A, the power is drawn from USB and use of the power adapter is not necessary.
Owon supplies PC software to control the oscilloscope and view waveforms. But besides the Owon software, it can also be used with Labview and it can be controlled using the SCPI protocol.
Model overview
| Model | VDS6102A | VDS6104A |
|---|---|---|
| Channels | 2 | 4 |
| Function generator | Yes |
No |
| Price |
Specifications
| Memory | 10 Mpts |
| Horizontal scale | 5ns - 100s/div |
| Maximum voltage | 40 V (peak - peak) |
| Sample rate | Max. 1 GSa/s |
| Automatic measurements | Vpp, Vavg, Vamp, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Overshoot, Preshoot, Rise Time, Fall Time, Delay A→B↑, Delay A→B↓, +Width, -Width, +Duty, -Duty |
| Connectivity | USB (Type-C), LAN, Wifi (optional) |
| Dimensions | 190 x 120 x 18mm |
| Weight | ~380 g |
Function generator
| Bandwidth | 5 MHz |
| Sample rate | 25 MSa/s |
| Resolution | 10 bits |
| Standard waveforms | Sine (0.1 Hz - 5 MHz), Square (0.1 Hz - 200 kHz), Ramp (1 Hz - 10 kHz), Pulse (1 Hz - 10 kHz) |
| Amplitude range | 10 mVpp - 5 Vpp |
| DC offset range (AC + DC) | ±2.5 V |
Accessories
The Owon VDS6102A comes with:
- USB Type-C cable
- AC-DC adapter
- BNC cable
- Probes
- Power cord
Pros and cons
- LAN and WiFi compatible
- 1 channel function generator
Downloads
| VDS6000 serie datasheet |  (125.64 KB) | Download |
