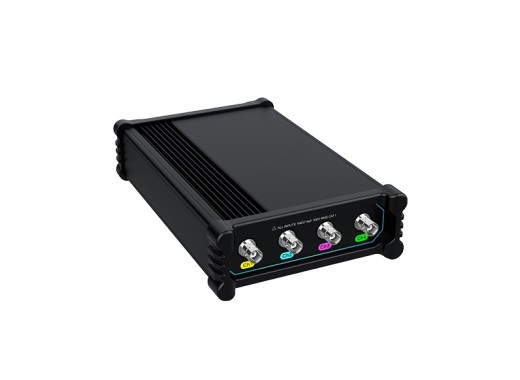

Micsig VTO2004 oscilloscope
Details
The Micsig VTO2004 is a compact, portable oscilloscope with a 200MHz bandwidth, 4 channels, 1GS/s sampling rate and up to 50Mpts of memory depth. This oscilloscope module doesn't have a screen but can be connected to an Android device or a pc with an Android OS via the provided USB type-C cable. Additionally, the VTO2004 offers a wide array of features, including 31 automated measurements and digital filtering capabilities to effectively eliminate interference and noise. For extended usage on the go, users have the option to purchase a spare battery, providing up to 24 hours of operation.
We also offer the VATO2004, which is a similar oscilloscope but with a lot of automotive functions.
Specifications
| Bandwidth | 200 MHz |
| Channels | 4 |
| Memory depth | 50 Mpts (divided by number of active channels) |
| Sample rate | 1 GS/s (divided by number of active channels) |
| Waveform capture rate | 130.000 wfm/s |
| Vertical resolution | 8 bits |
| Vertical scale | 5 mV/div - 10 V/div |
| Horizontal scale | 5 ns/div - 1 ks/div |
| Interfaces | USB Type-C |
| Decoding | CAN, LIN |
| Dimensions | 140 x 215 x 52 mm |
| Weight | 640 g |
Accessories
The VTO2004 comes by default with:
- 2x Passive BNC probes
- 1x Power cable
- 1x Power adapter
- 1x USB Type-C cable
Pros and cons
- Great specifications for the price
Downloads
| Datasheet VTO series |
 (5.99 MB) |
Download |
| User manual VTO series |
(8.54 MB) |
Download |
